Low Smoke Emission UV Resistant Halogen Free Solar Branch Connector with 4mm2 Solar Cable

Name: Low Smoke Emission UV Resistant Halogen Free Solar Branch Connector with 4mm2 Solar Cable
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-3T1
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-3T1

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar panel branch connector, pv panel connectors


Product Name:	3 To 1 Y Branch Connector	Range Of Application:	Solar Power
Rated Voltage:	1000VDC	Protection Degree:	IP67
Rated Current::	30A	Overvoltage Category:	CATIII

Product Name:	3 To 1 Y Branch Connector
Range Of Application:	Solar Power
Rated Voltage:	1000VDC
Protection Degree:	IP67
Rated Current::	30A
Overvoltage Category:	CATIII

Description

Low Smoke Emission UV Resistant Halogen Free Solar Branch Connector with 4mm2 Solar Cable

Low Smoke Emission Solar Branch Connector 1000VDC With Solar Cable 4mm²

Product Description

Y Branch way 3 to 1 Solar PV Waterproof Connector with Solar Cable 4mm². Designed for solar panels and related components wiring, particularly suitable for outdoor use with resistance to sunlight and anti-aging properties.

Technical Specifications

Compliant with DIN EN 50618, IEC 60332-1 (fire-resistance), EN/IEC 61034-2 (low smoke emission), halogen-free according to EN 50525-1, and low corrosivity of gases according to EN 50267-2-2/IEC 60754-2.

Solar Cable Specifications
Connector	Solar Connector
Rated current	30A
Rated voltage	1000V DC
Overvoltage category	CATIII
Degree of protection	IP67
Flame class	UL94-V0
Safety class	II
Temperature range	-40℃ ~ +110℃
Insertion/withdrawal force	≤50N/≥50N
Cable Gauge	16AWG,14AWG,12AWG,10AWG (1.5MM²-6mm²)
Cable conductor	Tinned copper or bare copper
Cable color	Red & Black
Cable Insulation	XLPE
Cable Length	0.1m-10m Optional

Key Features

Low power loss design
Specially designed for solar power systems
Double fixed connection for enhanced reliability
Anti-aging and UV resistant outer cover
Convenient installation with strong commonality
Suitable for harsh outdoor conditions
UV resistant, oil/grease resistant, and microbe-resistant
High wear and abrasion resistance

Assembly Instructions

Use only specified parts and tools for assembly
Isolate from power supply during assembly/disassembly
End product must provide electric shock protection
Do not unplug while under load
Protect disconnected connectors with sealing caps
Plugged parts maintain IP67 watertight rating

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accept both OEM and ODM orders.

Product Image

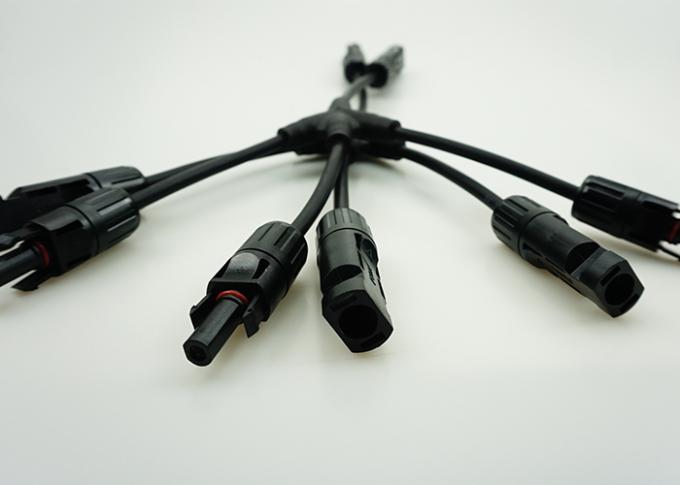

3 to 1 Y Branch Solar Connector with 4mm² cable

Warranty: 1 year with return policy within 15 days.
