PC Insulation Solar Branch Connector with Stable Electrical Properties and Copper Tin Plated Contacts for Reliable Performance

Name: PC Insulation Solar Branch Connector with Stable Electrical Properties and Copper Tin Plated Contacts for Reliable Performance
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-T
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-T

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    y branch connector, solar panel branch connector


Product Name:	Branch Connector	Connecting System:	CrImp Connection
Gender:	Female And Male	Rated Voltage:	1000VDC
Protection Degree:	IP67	Rated Current::	30A

Product Name:	Branch Connector
Connecting System:	CrImp Connection
Gender:	Female And Male
Rated Voltage:	1000VDC
Protection Degree:	IP67
Rated Current::	30A

Description

PC Insulation Solar Branch Connector with Stable Electrical Properties and Copper Tin Plated Contacts for Reliable Performance

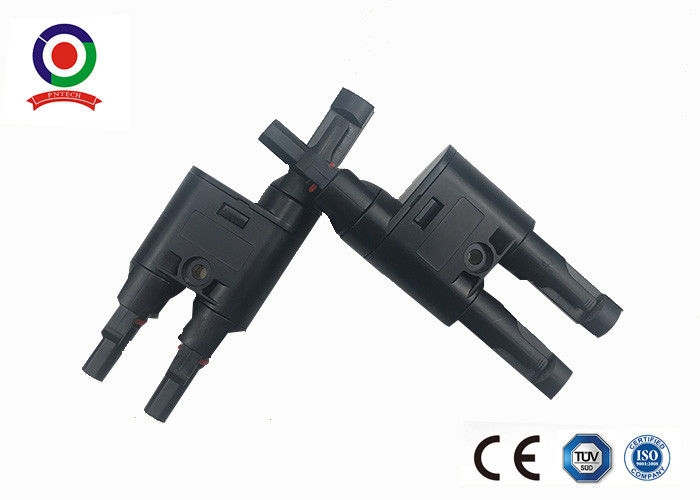

PC Insulation Solar Branch Connector IP67 Stable Electrical Properties 4000W

Product Description

Male And Female Branch Connector IP67 with Stable Electrical Properties

Technical Specifications

Adapter wire: OD4.5-7.0 (2.5-4.0mm²)
Connector contact resistance: 0.5mΩ
Insertion/extraction force: ≤50N/≥50N
Connector conductor material: copper, tin
Connection: crimp
Connector insulation material: PC
Operating temperature range: -40°C to +90°C

Parameter	Value
Product Name	Branch connector
Voltage rating	≤DC 1000V
Current rating	≤30A(3.5-6mm²)
Rated power	4000W
Waterproof level	IP67
Contact resistance	0.4mΩ
Testing voltage	DC 6000V(50Hz,1min)
Operation temperature	-40°C to +125°C
Certification	CE, RoHS, CCC

Key Advantages

Low power loss
Designed for solar power systems
Double fixed connection for reliability
Anti-aging and UV resistant outer cover
Easy installation with strong compatibility
Suitable for harsh outdoor conditions

Assembly Instructions

Use only specified parts and tools for assembly
Isolate from power supply during assembly/disassembly
End product must provide electric shock protection
Do not unplug under load - switch off power first
Protect disconnected connectors with sealing caps
Plugged parts are watertight (IP67 rated)

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we do.

Do you offer OEM & ODM services?

Yes, OEM & ODM are available.
