Waterproof 1 Set Male Female Solar Cable , 1000VDC 12V Solar Panel Cable

China Waterproof 1 Set Male Female  Solar Cable , 1000VDC 12V Solar Panel Cable supplier
Waterproof 1 Set Male Female  Solar Cable , 1000VDC 12V Solar Panel Cable supplier Waterproof 1 Set Male Female  Solar Cable , 1000VDC 12V Solar Panel Cable supplier

Large Image :  Waterproof 1 Set Male Female Solar Cable , 1000VDC 12V Solar Panel Cable

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: DC-00

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: Connector Solar Cable Weathering Resistance: Sun Res.
Rated Voltage: 1000VDC Degree Of Protection: IP67
Rated Current:: 30A Contact Resistance: ≤5mΩ

1 Set Male Female Connector Solar Cable for 12V Solar Panel Solar Cell
Solar cable Description
Cable description:
Working voltage:AC: 600/1000V DC: 900/1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 o C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120o C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.

Name Solar Cable
ConnectorConnector name Solar Connector
Rated current30A
Rated voltage1000V DC
Overvoltage categoryCATIII
Degree of protectionIP67
Flame classUL94-V0
Safety classII
Temperature range-40℃ ~ +110℃
Insertion force/withdrawal force≤50N/≥50N
Wire/CableCable Guage16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductorTinned copper or bare copper
Cable colorRed&Black
Cable InsulationXLPE
Cable Length0.1m-10m Optional
functionUV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range-40℃ ~ +90℃
Product warranty timeReturn Policy: Provide within half of a month.
Warranty: 1year.

Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

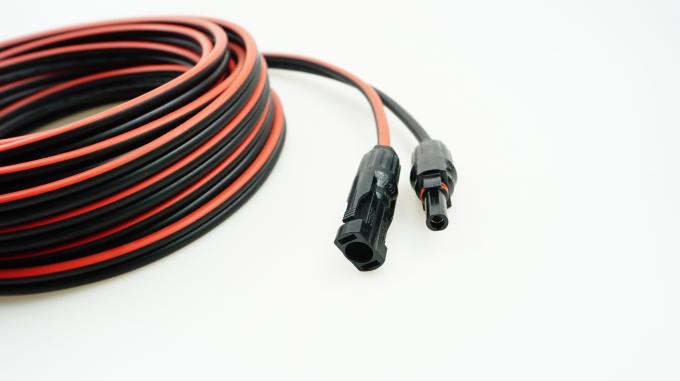

Picture of  Connector Solar Cable
Waterproof 1 Set Male Female  Solar Cable , 1000VDC 12V Solar Panel Cable
