TUV Approved Solar PV Power Connector with Silver Plated Copper Contacts for Quick Installation

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: LMZ

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar cable connectors, plug socket connector


Product Name:	Solar PV Power Connector	Contact Material:	Silver Plated Copper
Rated Voltage:	1000VDC	Protection Degree:	IP67
Contact Resistance:	≤5mΩ	Color:	Black

Product Name:	Solar PV Power Connector
Contact Material:	Silver Plated Copper
Rated Voltage:	1000VDC
Protection Degree:	IP67
Contact Resistance:	≤5mΩ
Color:	Black

Description

TUV Approved Solar PV Power Connector with Silver Plated Copper Contacts for Quick Installation

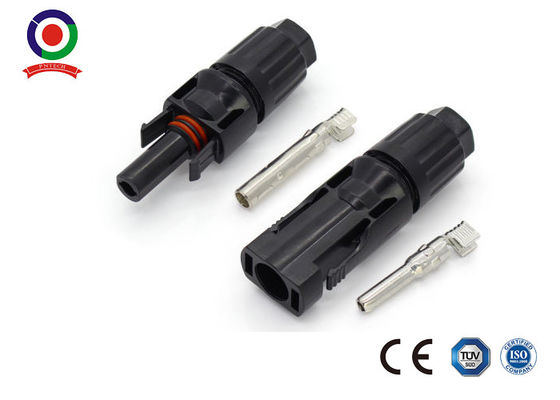

Outdoor Multi Contact Connector - Solar Panel Cable Connectors

IP67 solar PV power connector Male and Female for PV Wire Cable accessory

Product Features

Compatible with cable solar connector LMZ
10 Years of production experience in solar connectors
Quick and easy to install
Protection class IP68 suitable for outdoor harsh environments
Stable connection & reduced maintenance cost

Technical Specifications

Specification	Value
Rated voltage	1000V
Rated current	22A(2.5mm²), 30A(4mm²,6mm²)
Test voltage	6KV(50Hz)
Protection degree	IP67/IP2X
Insulation material	PC/PA/PPO/TPE
Contact material	Silver plated copper
Operating temperature	-40°C to +90°C
Flame class	UL94-V0
Contact resistance	≤5mΩ
Suitable cable	2.5mm²/4mm²/6mm² (AWG14/12/10)

Assembly Instructions

During self assembly, parts and tools other than those stated are used or if the preparation and assembly instructions described here are disregarded, then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock, PV Connectors must be isolated from the power supply while being assembled or disassembled.

The end product must provide protection from electric shock.

PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

Disconnected connectors should be protected from dirt and water with sealing caps. Plugged parts are watertight IP67.

Product Advantages

Simple, quick, safe and effective field assembly
Developed independently with innovative design and independent intellectual property rights
High mechanical endurance
High current and voltage carrying: 30A, 1000VDC
Low transition resistance
Innovative sealed, waterproof, dust resistance design: IP68
Excellent plastic material, UL 94-V0, wide temperature range: -40°C to 90°C, weather and UV resistant for long-time outdoor application
Approved by TUV

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. If you are very urgent to get the price, please call us to give complete specifications about the cable.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C.

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

Product Image
