Lower Contact Resistant Solar PV Connectors Load Capability With Big Current

China Lower Contact Resistant Solar PV Connectors Load Capability With Big Current supplier
Lower Contact Resistant Solar PV Connectors Load Capability With Big Current supplier Lower Contact Resistant Solar PV Connectors Load Capability With Big Current supplier

Large Image :  Lower Contact Resistant Solar PV Connectors Load Capability With Big Current

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: Solar PV Connector Rated Current: 30A(2.5~6mm2)
Gender: Female And Male Protection Degree: IP67
Rated Current:: 30A Contact Resistance: ≤5mΩ



TUV approved Mc4 Compatible IP67 1000VDC Wire Cable Solar PV Connector



MC4 Connector for Photovoltaic Solar panel:



1.TUV certification approval
2. Load capability with big current and high voltage
3. Lower contact resistant
4. Design of waterproof and dustproof
5. Excellent performances of high-low temperature ,fireproof, anti-ultraviolet
Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.



Solar PV Connector for Photovoltaic Description:



Rated current: 30A (2.5-4.0mm2)

Degree of protection: IP2 */IP67

Rated voltage: 1000V DC

Flammability rating: UL94-V0

Test voltage: 6000V (50Hz, 1min)

Safety: II

Overvoltage category/pollution Index: CATIII / 2

Adapter wire: OD4.5-7.0 (2.5-4.0mm2)

Connector contact resistance: 0.5m

Insertion/extraction force: less or equal to 50N/equal or greater than 50N

Connector conductor material: copper, tin

Connection: crimp

Connector Insulation material: PC

Operating temperature range: -40 - +90°C



Product Name MC4 Connector
Rated Current 30A(2.5~6mm2)
Rated Voltage 1000V DC
Test Voltage 6000V(50HZ, 1min)
Overvoltage category/Pollution degree CAT III/2
Contact resistence of plug connectors 1 mΩ
Conatct material Copper, Ag plated
Insulation material PC
Degree of protection IP20/IP67
Flame class UL94-V0
Safety class II
Suitable cable 2.5-6mm2
Insertion force/Withdrawal force ≤50N/ ≥50N
Connecting system Crimp connection
Temperature range -40ºC~+125ºC
Packing unit 1000pcs
Minimum order quantity 1000pcs
Weight per Piece (excluding packing) 25g
Custom tariff number 8536690000
Country of origin China



Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

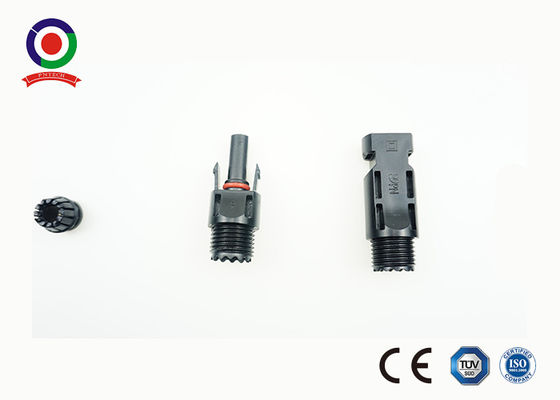

Picture of solar PV connector
