Low Transition Resistance MC4 Connector , PC Material 30A MC4 Solar Connector

China Low Transition Resistance MC4 Connector , PC Material 30A MC4 Solar Connector supplier
Low Transition Resistance MC4 Connector , PC Material 30A MC4 Solar Connector supplier Low Transition Resistance MC4 Connector , PC Material 30A MC4 Solar Connector supplier

Large Image :  Low Transition Resistance MC4 Connector , PC Material 30A MC4 Solar Connector

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: Solar MC4 Connector Cable Size: 2.5mm2 4mm2 6mm2
Gender: Female And Male Protection Degree: IP67
Rated Current:: 30A Contact Resistance: ≤5mΩ


TUV Ce IP67 waterproof 2.5mm2 4mm2 6mm2 Solar Mc4 Connector PC material 30A

The Features of solar MC4 connector

Contact presistance: <5mΩ
Safety class: class II
Waterproof grade: IP 65
Temperature range:-40ºC~+85ºC
Cable standard: 2.5/4/6mm2
Flame retardant grade: UL94-V0
Insulation material: PC
Composite contact material: Copper, silver plating
MC4  connector (TUV / CE approval)


Rate voltage:1000v
Rated current:22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage:6KV(50Hz)
Protect degree:IP67/IP2X
Insulation material:PC/PA/PPO/TPE
Contact material:Silver plated copper
Operating temperature:-40°C~+90°C
Safe class:2
Flame class:UL94-V0
Contact resistance of plug connectors:≤5mΩ
Insertion force:≤50N
Withdraw force:≥50N
Suitable cable:2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system:Snap in

Product No.PV004
Rated voltageTUV 1000V DC / UL 600V DC
Rated current30A
Suitable cable cross sections2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal sizeΦ4.0mm
Test voltageDC 8KV 1min
Pollution degree2
Protection classClass II
Terminal MaterialTinned copper
Contact resistance≤ 5mΩ
Insulation MaterialsPC
IP ratingIP67(IEC 60529)
Pull-out force≥ 50N
Insertion Force≤ 50N
Test temperature-40ºC~ +85ºC
Flame ClassUL94V - 0


Advantage:

• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

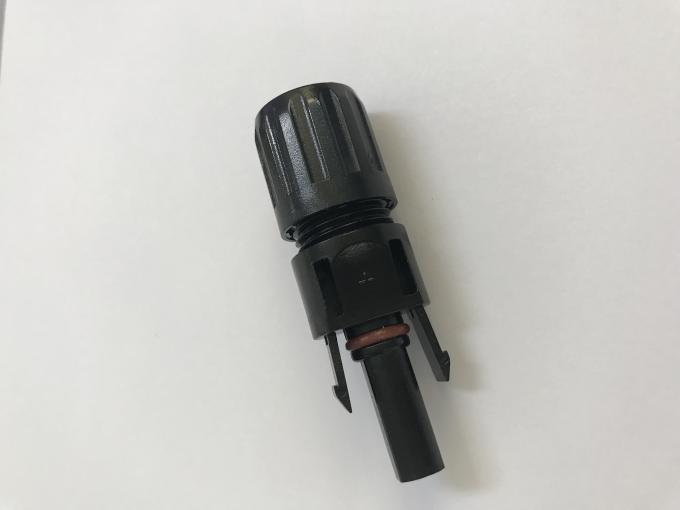

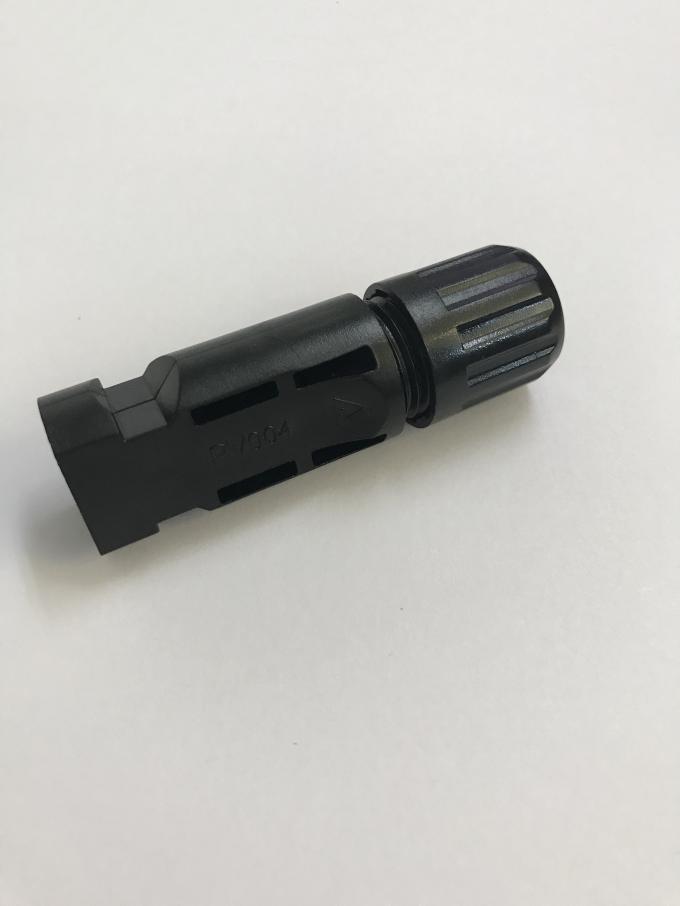

Picture of solar MC4 connector

Low Transition Resistance MC4 Connector , PC Material 30A MC4 Solar ConnectorLow Transition Resistance MC4 Connector , PC Material 30A MC4 Solar Connector
