IP67 2.5mm2 - 6mm2 MC4 Connector , Black MC4 Solar Panel Cable Connectors

China IP67 2.5mm2 - 6mm2 MC4 Connector , Black MC4 Solar Panel Cable Connectors supplier
IP67 2.5mm2 - 6mm2 MC4 Connector , Black MC4 Solar Panel Cable Connectors supplier IP67 2.5mm2 - 6mm2 MC4 Connector , Black MC4 Solar Panel Cable Connectors supplier

Large Image :  IP67 2.5mm2 - 6mm2 MC4 Connector , Black MC4 Solar Panel Cable Connectors

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: MC4 Solar Connector Flame Class:: UL94-V0
Gender: Female And Male Rated Current:: 30A
Contact Resistance: ≤5mΩ Color: Black


TUV Ce IP67 2.5mm2~6mm2 Mc4 Solar Connector for Multiple Solar System Connection

The Features of MC4 solar connector

1) Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2) highly robustness,UV-Resistance.
3) Connector adopts touch and insertion of reed with inner-knob type.
4) Auto-lock equipment of male and female points enable connection more easy and reliable.
5) Popular figure suit most of field installation.
6) Simple on-site processing.
7) Accommodates PV cable with deferent insulation diameters.
8) High current carrying capacity.


Rate voltage:1000v
Rated current:22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage:6KV(50Hz)
Protect degree:IP67/IP2X
Insulation material:PC/PA/PPO/TPE
Contact material:Silver plated copper
Operating temperature:-40°C~+90°C
Safe class:2
Flame class:UL94-V0
Contact resistance of plug connectors:≤5mΩ
Insertion force:≤50N
Withdraw force:≥50N
Suitable cable:2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system:Snap in

Product No.PV004
Rated voltageTUV 1000V DC / UL 600V DC
Rated current30A
Suitable cable cross sections2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal sizeΦ4.0mm
Test voltageDC 8KV 1min
Pollution degree2
Protection classClass II
Terminal MaterialTinned copper
Contact resistance≤ 5mΩ
Insulation MaterialsPC
IP ratingIP67(IEC 60529)
Pull-out force≥ 50N
Insertion Force≤ 50N
Test temperature-40ºC~ +85ºC
Flame ClassUL94V - 0


Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

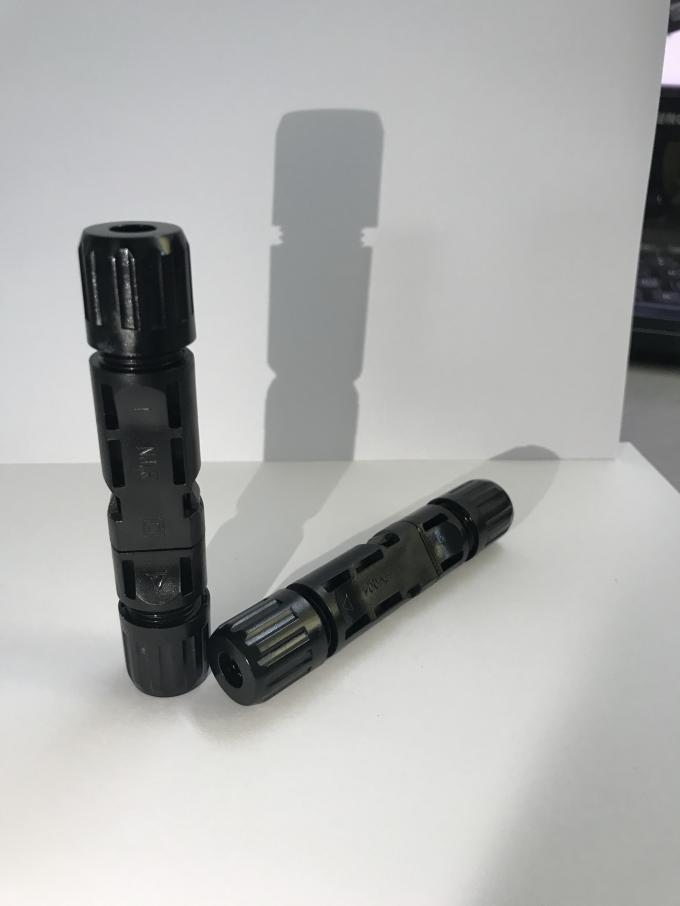

Picture of MC4 solar connector

IP67 2.5mm2 - 6mm2 MC4 Connector , Black MC4 Solar Panel Cable Connectors
