Double Protection Black Twin Core Solar Cable , Low Eccentricity 16mm 2 Core Cable

China Double Protection Black Twin Core Solar Cable , Low Eccentricity 16mm 2 Core Cable supplier
Double Protection Black Twin Core Solar Cable , Low Eccentricity 16mm 2 Core Cable supplier Double Protection Black Twin Core Solar Cable , Low Eccentricity 16mm 2 Core Cable supplier

Large Image :  Double Protection Black Twin Core Solar Cable , Low Eccentricity 16mm 2 Core Cable

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 2x16mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m per day
Contact Now
Detailed Product Description
Item Name: Solar Cable 2 Core 16mm Struction: 2*120/0.4mm
Ambient Temperature: -40~90 Degree Conductor: Tinned Copper
Rate Voltage: 0.6 / 1.0KV AC Core: 2 Core
Color: Black Standard: TUV 2pfg 1169/08.07



TUV Certificate PV Cable Twin 16mm2 Photovoltaic Solar Double Core dual XLPE



TUV PV Cable Fire Resistant Cables Description:


2 PfG 1169/08.2007 covers the single core flexible cables (wires) used in DC sides of photovoltaic system which max. permissible DC voltage is 1.8kV(line to line, non ground system). The product is applicable to the environment which safety degree is under Class II,and it can be parallel used.



TYPE:TWIN CORE SOALR CABLE PART NO:PV1-F 2X16mm2
CONSTRUCTION:
CONDUCTOR MATERIAL Tinned copper
CONSTRUCTION 120/0.4mm
RESISTANCE 1.24 Ω/km (MAX. at 20℃)
INSULATION MATERIAL XLPE
DIAMETER 2.0±0.1 mm
THICKNESS 0.6±0.10 mm
COLOUR Black / Red
JACKET MATERIAL XLPE
DIAMETER 22 X 10.2mm
THICKNESS 0.6±0.10 mm
COLOUR Black
Electrical Data Rated Rating AC 0.6/1KV DC1800V
Rated temperature -40 ~+90,Dry and Wet
60℃ rated current 132A
Test voltage 3.0KV AC
Weathering Resistance Sun Res.
MARKING TüV 2 PfG 1169 PV1-F 2×16mm2 NINGBO PNTECH NEW ENERGY CO.,LTD



TUV PV Cable Fire Resistant Cables Technical Data:



1. Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2. Test Voltage:6500V,50Hz,5Min.
3. Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
4. Bending Radius:Fixed installation>4X Occasionally moved>5X



Advantage:



1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.

2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.

3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.

4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.

5, strong flexibility: cable has a pressure, bending, strong toughness.

6, long service life: normal outdoor use, service life> 25 years

7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.



FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

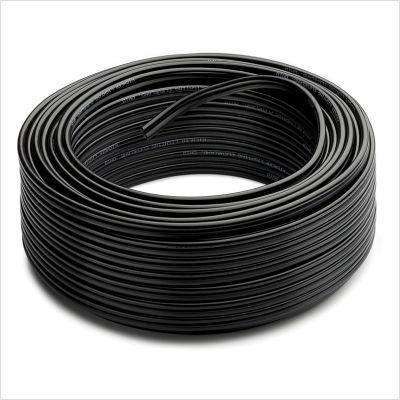

Picture of twin core 16mm2 solar cable



Double Protection Black Twin Core Solar Cable , Low Eccentricity 16mm 2 Core Cable
