Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 2x6mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m per day
Item Name: |
Solar Power Cable 2x10mm2 |
Conductor Dc Resistance: |
≤1.95（Ω/KM） |
Life Span: |
25 Years |
Conductor: |
Tinned Copper |
Struction: |
2*80/0.4mm |
Rate Voltage: |
1800V DC |
Core: |
2 Core |
Color: |
Black |
Item Name: |
Solar Power Cable 2x10mm2 |
Conductor Dc Resistance: |
≤1.95（Ω/KM） |
Life Span: |
25 Years |
Conductor: |
Tinned Copper |
Struction: |
2*80/0.4mm |
Rate Voltage: |
1800V DC |
Core: |
2 Core |
Color: |
Black |
TUV approved 2 Pfg 1169 PV1-F Solar Power Cable 10mm2 8AWG DC1.8KV AC 0.6KV
TUV PV Cable Fire Resistant Cables Description:
Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X
TUV PV Cable Fire Resistant Cables Technical Data:
1. Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2. Test Voltage:6500V,50Hz,5Min.
3. Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
4. Bending Radius:Fixed installation>4X Occasionally moved>5X
| TYPE:TWIN CORE SOALR CABLE | PART NO:PV1-F 2X10mm2 | ||
| CONSTRUCTION: | |||
| CONDUCTOR | MATERIAL | Tinned copper | |
| CONSTRUCTION | 80/0.4mm | ||
| RESISTANCE | 1.95 Ω/km (MAX. at 20℃) | ||
| INSULATION | MATERIAL | XLPE | |
| DIAMETER | 2.0±0.1 mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black / Red | ||
| JACKET | MATERIAL | XLPE | |
| DIAMETER | 17.6 X 8.5mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black | ||
| Electrical Data | Rated Rating | AC 0.6/1KV DC1800V | |
| Rated temperature | -40 ～＋90,Dry and Wet | ||
| 60℃ rated current | 98A | ||
| Test voltage | 3.0KV AC | ||
| Weathering Resistance | Sun Res. | ||
| MARKING | TüV 2 PfG 1169 PV1-F 2×10mm2 NINGBO PNTECH NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10 | ||
Advantage:
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

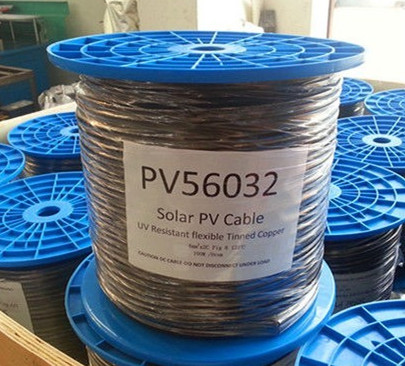

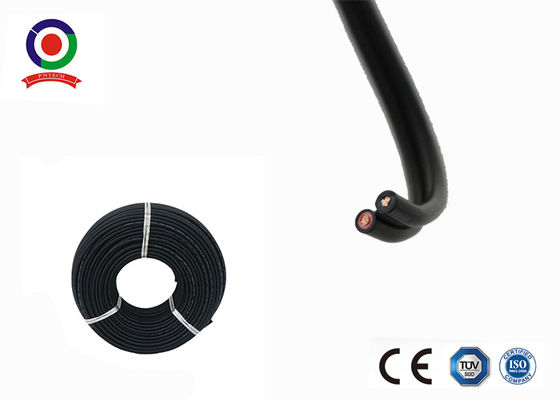

Picture of twin core 10mm2 solar power cable
