Low Eccentricity 6mm Twin Core Solar Cable , TUV Approved 2 Core Red And Black Cable

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number H1Z2Z2 2x6mm2
Minimum Order Quantity 100m
Price Negotiation
Packaging Details 100m/roll
Delivery Time 3-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000m per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 2 Core Solar Cable Cable OD 14.5mm
Sheath XLPE Conductor Tinned Copper
Struction 2*84/0.3mm Rate Voltage 0.6 / 1KV AC 1800V DC
Core 2 Core Color Red And Black
High Light

2 core solar cable

,

twin core flex cable

Leave a Message
Product Description

EN50618 H1Z2Z2 2 core 6mm2 1.5KVDC solar cable XLPE dual insulation TUV approved



Description:



Temperature:-40°C-- 90°C

Marking: 2×6.0mm2 NINGBO PNTECH NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10

Conductor: Tinned annealed copper
Insulation:120°C XLPE , black
Jacket:120°C XLPE , black or red

Nominal Voltage : AC 600/1000V DC 1000/1800V

Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance

Sheath Color :Black or as per customer's requeit

Temperature Rating:45°c upto +125°c -40°F upto +257°F

Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F

Max.Short circuit temperature:280°c,+536°F

Bending Radius:Fixed installation>4X Occasionally moved>5X



TYPE:TWIN CORE SOALR CABLE PART NO:H1Z2Z2 2X6.0mm2
CONSTRUCTION:
CONDUCTOR MATERIAL Tinned copper
CONSTRUCTION 84/0.3mm
RESISTANCE 3.39 Ω/km (MAX. at 20℃)
INSULATION MATERIAL XLPE
DIAMETER 2.0±0.1 mm
THICKNESS 0.6±0.10 mm
COLOUR Black / Red
JACKET MATERIAL XLPE
DIAMETER 14.5 X 7mm
THICKNESS 0.6±0.10 mm
COLOUR Black
Electrical Data Rated Rating AC 0.6/1KV DC1800V
Rated temperature -40 ~+90,Dry and Wet
60℃ rated current 70A
Test voltage 3.0KV AC
Weathering Resistance Sun Res.
MARKING 2×6.0mm2 NINGBO PNTECH NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10



Specification:



Conductor Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation Polyolefin Copolymer electron-beam coss-linked
Sheath Jacket Polyolefin Copolymer electron-beam coss-linked
Nominal Voltage Uo/U=600V/1000VAC, 1000V/1800VDC
Test Voltage 6500V, 50Hz, 5Min
Temperature Rating -40°C-125°C ,More than 25 Years (TUV)
Fire Performance IEC 60332-1
Smoke Emission IEC61034, EN 50286-2
Low Fire Load DIN 51 900
Certification TUV EN50618



Advantage:



1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.

2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.

3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.

4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.

5, strong flexibility: cable has a pressure, bending, strong toughness.

6, long service life: normal outdoor use, service life> 25 years

7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.



FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

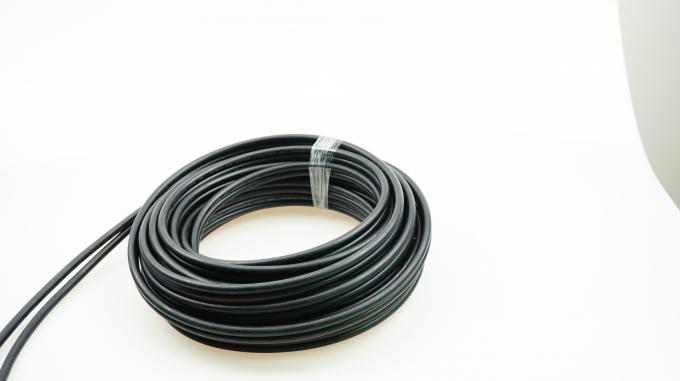

Picture of twin core pv solar cable 6mm2
