Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 2x2.5mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 100m/roll
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m per day
Product Name: |
Twin Core Photovoltaic Cable 2.5mm2 |
Packing: |
100m Per Roll |
Sheath: |
XLPE |
Conductor: |
Tinned Copper |
Struction: |
2*50/0.25mm |
Rate Voltage: |
0.6 / 1KV AC 1800V DC |
Core: |
2 Core |
Color: |
Black |
Product Name: |
Twin Core Photovoltaic Cable 2.5mm2 |
Packing: |
100m Per Roll |
Sheath: |
XLPE |
Conductor: |
Tinned Copper |
Struction: |
2*50/0.25mm |
Rate Voltage: |
0.6 / 1KV AC 1800V DC |
Core: |
2 Core |
Color: |
Black |
TUV CE certified twin core Photovoltaic cable 2.5mm2 100m per roll Black XLPE
Description:
Conductor: Tinned annealed copper
Insulation:120°C XLPE , black
Jacket:120°C XLPE , black or red
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X
| TYPE:TWIN CORE SOALR CABLE | PART NO:PV1-F 2X2.5mm2 | ||
| CONSTRUCTION: | |||
| CONDUCTOR | MATERIAL | Tinned copper | |
| CONSTRUCTION | 50/0.25mm | ||
| RESISTANCE | 8.21 Ω/km (MAX. at 20℃) | ||
| INSULATION | MATERIAL | XLPE | |
| DIAMETER | 2.0±0.1 mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black / Red | ||
| JACKET | MATERIAL | XLPE | |
| DIAMETER | 11 X 5.3mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black | ||
| Electrical Data | Rated Rating | AC 0.6/1KV DC1800V | |
| Rated temperature | -40 ～＋90,Dry and Wet | ||
| 60℃ rated current | 41A | ||
| Test voltage | 3.0KV AC | ||
| Weathering Resistance | Sun Res. | ||
| MARKING | PV1-F 2×2.5mm2 NINGBO PNTECH NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10 |
||
Specification:
| Conductor | Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5 |
| Insulation | Polyolefin Copolymer electron-beam coss-linked |
| Sheath Jacket | Polyolefin Copolymer electron-beam coss-linked |
| Nominal Voltage | Uo/U=600V/1000VAC, 1000V/1800VDC |
| Test Voltage | 6500V, 50Hz, 5Min |
| Temperature Rating | -40°C-125°C ,More than 25 Years (TUV) |
| Fire Performance | IEC 60332-1 |
| Smoke Emission | IEC61034, EN 50286-2 |
| Low Fire Load | DIN 51 900 |
| Certification | TUV 2PFG 1169/08 2007 PV1--F |
Advantage:
1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.
3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.
4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

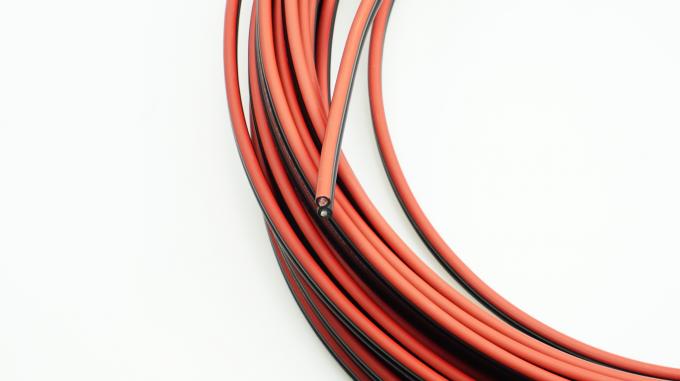

Picture of twin core solar cable 2.5mm2
