TUV Certified 2 Core Solar Cable 2.5mm2 XLPE 1.8KV DC 100m Roll

Name: TUV Certified 2 Core Solar Cable 2.5mm2 XLPE 1.8KV DC 100m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 2x2.5mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV1-F 2x2.5mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2 core solar cable, twin core electrical cable


Product Name:	2 Core Solar Cable 2.5mm2	Insulation:	XLPE
Sheath:	XLPE	Conductor:	Tinned Copper
Struction:	2*50/0.25mm	Rate Voltage:	0.6 / 1KV AC 1800V DC
Core:	2 Core	Color:	Black

Product Name:	2 Core Solar Cable 2.5mm2
Insulation:	XLPE
Sheath:	XLPE
Conductor:	Tinned Copper
Struction:	2*50/0.25mm
Rate Voltage:	0.6 / 1KV AC 1800V DC
Core:	2 Core
Color:	Black

Description

TUV Certified 2 Core Solar Cable 2.5mm2 XLPE 1.8KV DC 100m Roll

TUV Certified Twin Core Solar Cable, 1.8KV DC 2.5 mm Two Core Cable 100m Per Roll

TUV certified 2 core solar cable 2.5mm² 100m per roll with Black XLPE insulation rated for 1.8KV DC applications.

Product Specifications

TYPE	TWIN CORE SOLAR CABLE \| PART NO:PV1-F 2X2.5mm²
CONSTRUCTION:
CONDUCTOR MATERIAL	Tinned copper
CONSTRUCTION	50/0.25mm
RESISTANCE	8.21 Ω/km (MAX. at 20℃)
INSULATION MATERIAL	XLPE
INSULATION DIAMETER	2.0±0.1 mm
INSULATION THICKNESS	0.6±0.10 mm
COLOUR	Black / Red
JACKET MATERIAL	XLPE
JACKET DIAMETER	11 X 5.3mm
JACKET THICKNESS	0.6±0.10 mm
JACKET COLOUR	Black

Rated Rating	AC 0.6/1KV DC1800V
Rated temperature	-40℃ to +90℃, Dry and Wet
60℃ rated current	41A
Test voltage	3.0KV AC
Weathering Resistance	Sun Resistant
MARKING	PV1-F 2×2.5mm² NINGBO NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10

Technical Details

Conductor: Tinned Copper, according to VDE0295/IEC60228, Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage: AC 600/1000V DC 1000/1800V
Characteristics: Heat-resistant flame retardant, UV/ozone/hydrolysis/climate resistance
Sheath Color: Black or as per customer's request
Temperature Rating: -40℃ to +125℃ (-40°F to +257°F)
Ambient temperature: 25 years (TUV) -40℃ to +90℃ (-40°F to +194°F)
Max. Short circuit temperature: 280℃ (+536°F)
Bending Radius: Fixed installation >4X, Occasionally moved >5X

Key Advantages

99.9% high-purity oxygen-free copper for superior conductivity and corrosion resistance
Low eccentricity design ensures uniform thickness and safety
Double protection structure with insulation and jacket extends service life
High-performance polymer materials with excellent environmental resistance
Exceptional flexibility with strong pressure and bending resistance
Long service life (>25 years in normal outdoor conditions)
Manufactured with advanced equipment under ISO9001-2008 and IATF16949:2016 certifications

Frequently Asked Questions

Q: When can I get the quotation?

A: Within 24 hours of inquiry. Urgent requests can be handled by phone with complete specifications.

Q: How long is the delivery time?

A: Typically 3-4 working days after payment, depending on quantity.

Q: What payment terms do you accept?

A: We accept T/T (bank transfer) and L/C.

Q: Do you accept customized orders?

A: Yes, we do.

Q: Do you offer OEM & ODM services?

A: Yes, OEM & ODM are available.

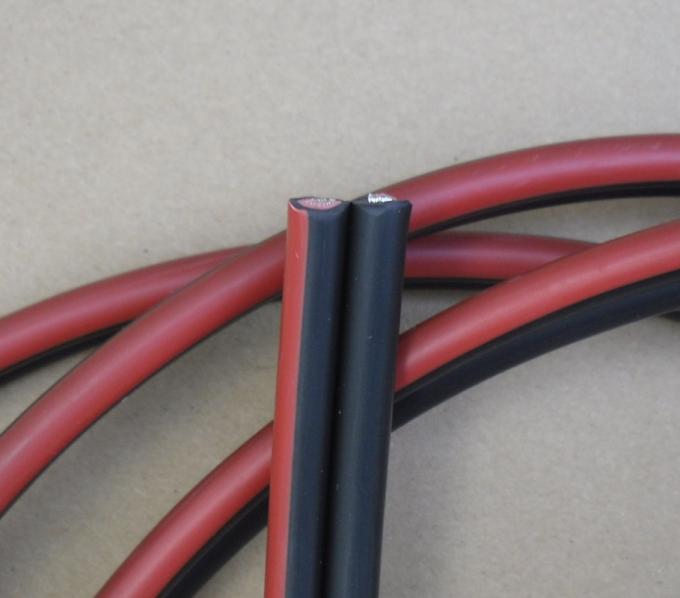

Product Image

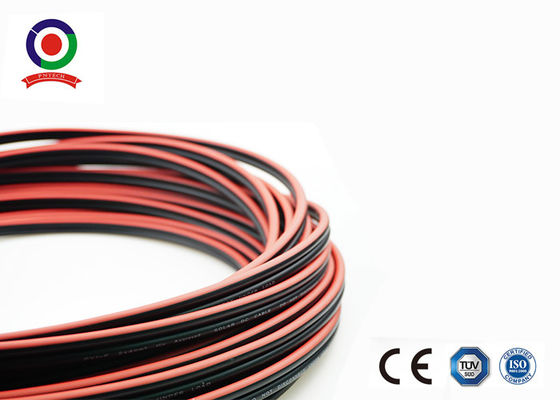

TUV Certified Twin Core Solar Cable 2.5mm²
