Product Name: |
Twin Core Solar Cable 4mm2 |
Insulation Material: |
XLPE |
Conductor: |
Tinned Copper |
Construction: |
2*56/0.3mm |
Thickness: |
0.8mm |
Resistance:: |
5.09 Ω/km (MAX. At 20℃) |
Cable OD: |
12.5 / 6.0mm |
Color: |
Black |
Product Name: |
Twin Core Solar Cable 4mm2 |
Insulation Material: |
XLPE |
Conductor: |
Tinned Copper |
Construction: |
2*56/0.3mm |
Thickness: |
0.8mm |
Resistance:: |
5.09 Ω/km (MAX. At 20℃) |
Cable OD: |
12.5 / 6.0mm |
Color: |
Black |
XLPE Insulated tinned copper twin core solar cable 2x4mm2 CE TUV certification
Construction:
1. Core Conductor: stranded tinned copper
2. Size: 2 core 4.0mm2
3. Cable OD: 12.5mm
4. Insulation: Electron-beam cross-linked annealed copper
5. Jacket XLPE black
6. Working voltage:AC: 600/1000V DC: 1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
7. Working Temperature:-40-90 º C
8. Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120º C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km
9. Approved: TUV 2PfG 1169
10. High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes Halogen free, flame ratardant
Application
These cables are designed for connecting photovoltaic system components inside and outside
of buildings and equipment with high mechanical requirements and extreme weather
conditions.
Standards
DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2
| TYPE: Twin core solar cable | PART NO:PV1-F 2X4mm2 | ||
| CONSTRUCTION: | |||
| CONDUCTOR | MATERIAL | Tinned copper | |
| CONSTRUCTION | 56/0.3mm | ||
| RESISTANCE | 5.09 Ω/km (MAX. at 20℃) | ||
| INSULATION | MATERIAL | XLPE | |
| DIAMETER | 4.2±0.1 mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black / Red | ||
| JACKET | MATERIAL | XLPE | |
| DIAMETER | 12.5 X 6.1mm | ||
| THICKNESS | 0.6±0.10 mm | ||
| COLOUR | Black | ||
| Electrical Data | Rated Rating | AC 0.6/1KV DC1800V | |
| Rated temperature | -40 ～＋90,Dry and Wet | ||
| 60℃ rated current | 52A | ||
| Test voltage | 3.0KV AC | ||
| Weathering Resistance | Sun Res. | ||
| MARKING | PV1-F 2×4mm2 NINGBO PNTECH NEW ENERGY CO.,LTD TÜV SÜD approved |
||
Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please
call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

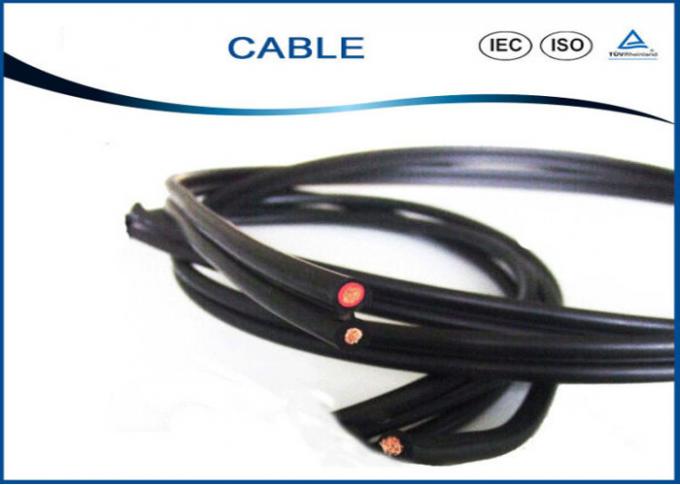

Picture of 4mm² twin core solar cable
