Abrasion Resistant Single Core Solar Cable , 4mm2 Electrical Power Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m / roll

Price: Negotiation

Packaging Details: 100m / roll 250m / roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
High Light:

single core electrical cable

,

tuv solar cable

Product Name:
4mm2 Pv Solar Cable
Temperature Range:
Temperature Range
Insulation Material:
XLPE
Structure:
56/0.3mm
Conductor Material:
Stranded Tinned Copper
Cable OD:
5.7mm
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Product Name:
4mm2 Pv Solar Cable
Temperature Range:
Temperature Range
Insulation Material:
XLPE
Structure:
56/0.3mm
Conductor Material:
Stranded Tinned Copper
Cable OD:
5.7mm
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Description
Abrasion Resistant Single Core Solar Cable , 4mm2 Electrical Power Cable



TUV EN50618 single core 4mm2 Electric Power Cable XLPE insulated UV resistance



Construction



1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2.  Description:

(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
3. Marking:

TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x6,0mm2 DC 1.5 KV NINGBO PNTECH NEW ENERGY CO.,LTD



Name: Single-core solar cable Conductor: Tinned copper wire
Executive standard: EN 50618 Insulation: Low smoke halogen-free irradiation cross-linked polyolefin
Model: H1Z2Z2-K Jacket: Low smoke halogen-free irradiation cross-linked polyolefin
Cable specifications:2.5/4/6/10/16/25/35mm² Rated Voltage:1500V
Ambient temperature:-40~90ºC Testing Voltage:6.5KV
Cable temperature:-40~120ºC Weather resistance: UV blocking
Short circuit temperature:250ºC Service life:>25 years
Bending radius:>4×Ø(Ø<8mm) >6×Ø(Ø≥8mm) Color: Black, Red


Applications



Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70


Options:


Colored phase ID stripes available on request
Multi-plexing available on request


Features:


Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C



Product Name TUV Standard Solar Cable
Model NO. H1Z2Z2-K 1x 4mm2
Voltage High Voltage Cable
Insulation Material XLPE
Material Shape Round Wire
Certification ROSH, CE, TUV
Standards TUV EN50618
Cores 1 Core
Transport Package Iron-Wooden Drum, Iron Drum
Application Construction, Underground, Industrial, Power Station
Sheath Material XLPE
Wire Core Material Tinned Copper
Cross Section 4mm2




Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

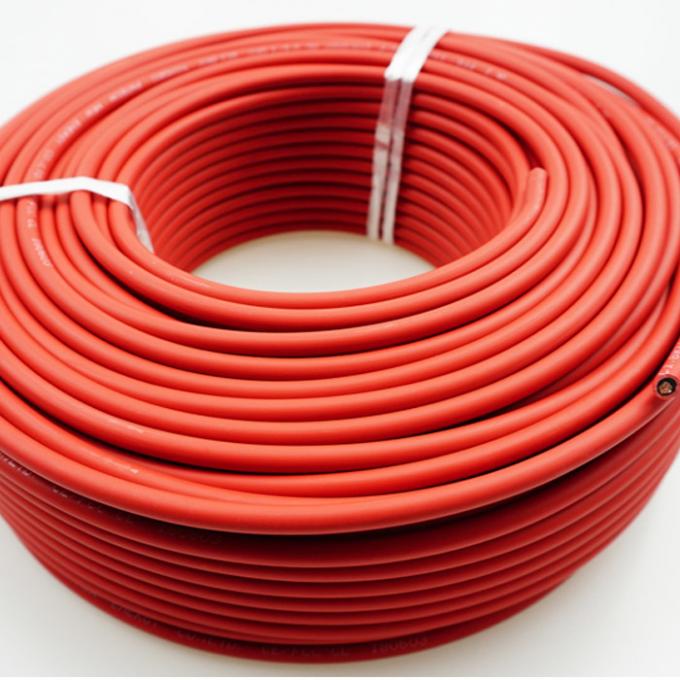

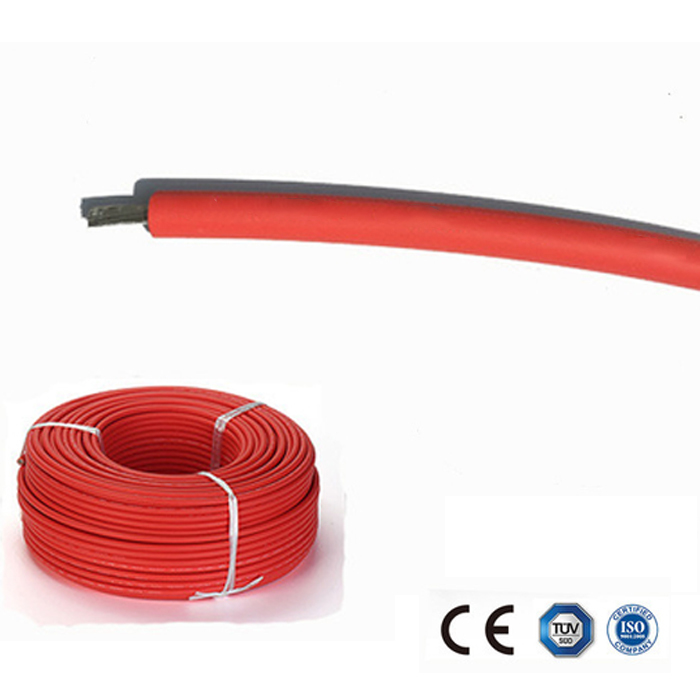

Pictures of 4mm2 Electric Power Cable
Abrasion Resistant Single Core Solar Cable , 4mm2 Electrical Power Cable 0
