16mm² PV XLPE Solar Cable 9.2mm OD Tinned Copper 1.24 Ω/km

Name: 16mm² PV XLPE Solar Cable 9.2mm OD Tinned Copper 1.24 Ω/km
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 1x16mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: PV1-F 1x16mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    single core electrical cable, tuv solar cable


Product Name:	16mm² PV XLPE Cable	Insulation Material:	XLPE
Conductor:	Tinned Copper	Construction:	120/0.4mm
Thickness:	0.8mm	Resistance::	1.24 Ω/km (MAX. At 20℃)
Cable OD:	9.2mm	Color:	Black Or Red

Product Name:	16mm² PV XLPE Cable
Insulation Material:	XLPE
Conductor:	Tinned Copper
Construction:	120/0.4mm
Thickness:	0.8mm
Resistance::	1.24 Ω/km (MAX. At 20℃)
Cable OD:	9.2mm
Color:	Black Or Red

Description

16mm² PV XLPE Solar Cable 9.2mm OD Tinned Copper 1.24 Ω/km

UV Resistance 16mm² Single Core Solar Cable 9.2mm OD Dual Insulated

TUV EN50618 UV resistance dual insulated 16mm² PV XLPE Cable with 25 years warranty

Technical Characteristics

Conductor: 120/0.4mm
Cable OD: 9.2mm
Working voltage: AC 600/1000V | DC 1500V
Maximum Voltage: 1.8KV
Test Voltage: 6.5kV AC
Working Temperature: -40°C to +90°C
Bending Radius: Fixed - 4× overall diameter | Flexed - 5× overall diameter
Max. Conductor temperature: 120°C
Short-circuit max. Conductor temperature: 250°C
Insulation resistance: 10 MΩ × km

Applications

Designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Standards Compliance

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission: EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Specifications

Type	Cross Section	Strand Design	Conductor Diameter	Conductor Resistance	Outer Diameter	Rated Voltage	Rated Current
H1Z2Z2-K 1x16mm²	16mm²	120x φ0.4mm	5.2mm	1.24 Ω/km	8.2mm	1500VDC	132A

Key Features

Electron beam cross-linked materials do not melt or flow, even at high temperature, with high resistance against heat, cold, abrasion, UV, ozone and hydrolyses.

Provides interconnection between photovoltaic (PV) panels and from panels to the inverter.

Operates at DC voltage and provides long life in exposed conditions.

Product Details

Applications: Widely used in indoor and outdoor solar installations, electrical installations, industrial and agricultural industries.

Features:

Low smoke without halogen
Excellent cold, UV, ozone and weather resistance
Flame retardant, cutting resistance and penetration resistance
Cable protection level II
Halogen-free, non-toxic materials conforming to ROHS

Electrical Properties:

DC resistance: ≤5.09 Ω/km at 20°C
Insulation resistance: ≥1014 Ω.cm at 20°C | ≥1011 Ω.cm at 90°C
Sheath surface resistance: ≥109 Ω

Cable Structure:

Conductor: Tinned copper wire
Insulation: >0.5mm thick low smoke and halogen free material
Sheath: >0.5mm thick low smoke and halogen free material

Operating Parameters:

Ambient temperature: -40°C to +90°C
Maximum conductor temperature: 120°C (200°C for 5s in short circuit)
Voltage limit: AC 0.6/1kV | DC 1.8kV

Frequently Asked Questions

1. When can I get the quotation?
Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

2. How long is the delivery time?
Typically 3-4 working days after payment, depending on quantity.

3. What payment terms do you accept?
T/T (bank transfer) and L/C.

4. Do you accept customized orders?
Yes, we do.

5. Do you offer OEM & ODM services?
Yes, OEM & ODM are available.

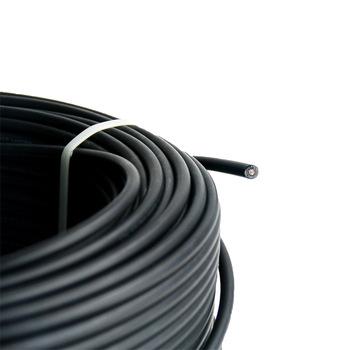

Product Image
