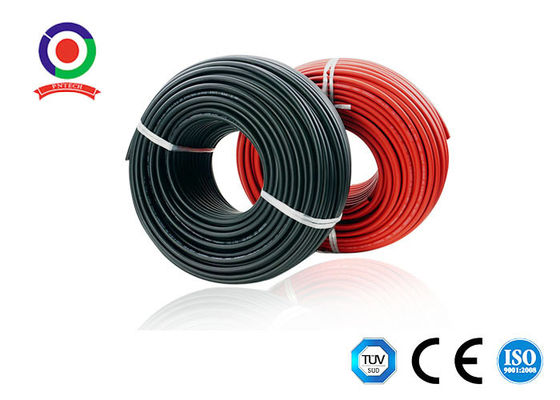

4mm2 DC XLPE Solar Cable 55A 1.5KV Tinned Copper

TUV EN50618 certified 12AWG 4mm² 1.5KV DC XLPE solar cable with dual insulation and UV resistance.

• Conductor: Tinned annealed copper
• Insulation: 120°C XLPE, black
• Jacket: 120°C XLPE, black or red

• Nominal Voltage: U0/U=600/1000V AC, 1000/1800V DC
• Test Voltage: 6500V, 50Hz, 5Min
• Temperature Rating: -40°C to +125°C (-40°F to +257°F)
• Ambient Temperature: 25 years (TUV) -40°C to +90°C (-40°F to +194°F)
• Max Short Circuit Temperature: 280°C (+536°F)
• Bending Radius: Fixed installation >4X, Occasionally moved >5X

Single conductor, sunlight-resistant photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70.

• Colored phase ID stripes available on request
• Multi-plexing available on request

• Rated 90°C wet and dry
• Deformation-resistant at high temperatures
• Excellent moisture resistance
• Stable electrical properties over broad temperature range
• Excellent resistance to crush and compression cuts
• Resistant to most oils and chemicals
• UV/sunlight-resistant
• Meets cold bend test at -40°C

• DC Resistance: Finished cable at 20℃ conductive wire core DC resistance ≤5.09 Ω/km
• Insulation Resistance: 20℃ ≥10¹⁴ Ω·cm, 90℃ ≥10¹¹ Ω·cm
• Sheath Surface Resistance: ≥10⁹ Ω

• Conductor: Tinned copper wire 2.5, 4, 6, 10, 16 mm² PV1-F
• Insulation: >0.5mm thick with low smoke and halogen material
• Sheath: Low smoke and halogen free material thickness >0.5mm

• Ambient Temperature: -40℃ to +90℃
• Highest Temperature of Conductor: 120℃ (allow 5s in short circuit temperature 200℃)
• Limited Voltage: AC0.6/1kV DC1.8kV

(We also produce single core of 2.5mm², 6mm², 10mm² and 16mm², as well as dual cores, please consult us directly if necessary)
