10mm2 Solar Cable 1000V AC 1.5KV DC XLPE Insulation 7.4mm OD

Name: 10mm2 Solar Cable 1000V AC 1.5KV DC XLPE Insulation 7.4mm OD
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x10mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x10mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m / roll

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    double insulated single core cable, single core electrical cable


Product Name:	Solar Cable 10mm2	Structure:	80/0.4mm
Insulation Material:	XLPE	Temperature Range:	-40℃～+90℃
Conductor Material:	Stranded Tinned Copper	Cable OD:	7.4mm
Resistance:	≤1.95（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red	Packing:	100m Per Roll

Product Name:	Solar Cable 10mm2
Structure:	80/0.4mm
Insulation Material:	XLPE
Temperature Range:	-40℃～+90℃
Conductor Material:	Stranded Tinned Copper
Cable OD:	7.4mm
Resistance:	≤1.95（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red
Packing:	100m Per Roll

Description

10mm2 Solar Cable 1000V AC 1.5KV DC XLPE Insulation 7.4mm OD

10mm² Single Core Solar Cable 1000V AC 1.5KV DC

TUV EN50618 XLPE insulation tinned copper solar Cable with excellent stripping performance

Key Specifications

Voltage Rating: 600/1000V
Temperature Range: -40°C to 90°C
Conductor: Tinned annealed copper (80/0.3mm)
Insulation: 90°C XLPE, black
Jacket: 90°C XLPE, black or red
Cable OD: 7.4mm

Certification & Marking

TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x10mm² DC 1.5 KV NINGBO NEW ENERGY CO.,LTD

Applications

Specifically designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. For permanent installations.

Outstanding Advantages

Dual wall insulation, electron beam cross-linked
Excellent resistance to UV, oil, greases, oxygen and ozone
Superior abrasion resistance
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved

Technical Specifications

Product Name	TUV Standard Solar Cable
Model NO.	H1Z2Z2-K 1x 10mm²
Voltage	High Voltage Cable
Insulation Material	XLPE
Certification	ROSH, CE, TUV
Standards	TUV EN50618
Cores	1 Core
Application	Construction, Underground, Industrial, Power Station
Wire Core Material	Tinned Copper
Cross Section	10mm²

Electrical Properties

DC resistance: ≤5.09 Ω/km at 20℃
Insulation resistance: ≥1014 Ω.cm at 20℃, ≥1011 Ω.cm at 90℃
Sheath surface resistance: ≥109 Ω

Environmental Specifications

Ambient temperature: -40℃ to +90℃
Maximum conductor temperature: 120℃ (200℃ for 5s in short circuit)
Voltage limit: AC 0.6/1kV DC 1.8kV

We also produce single core cables in 2.5mm², 4mm², 6mm² and 16mm² sizes, as well as dual core versions. Please contact us for details.

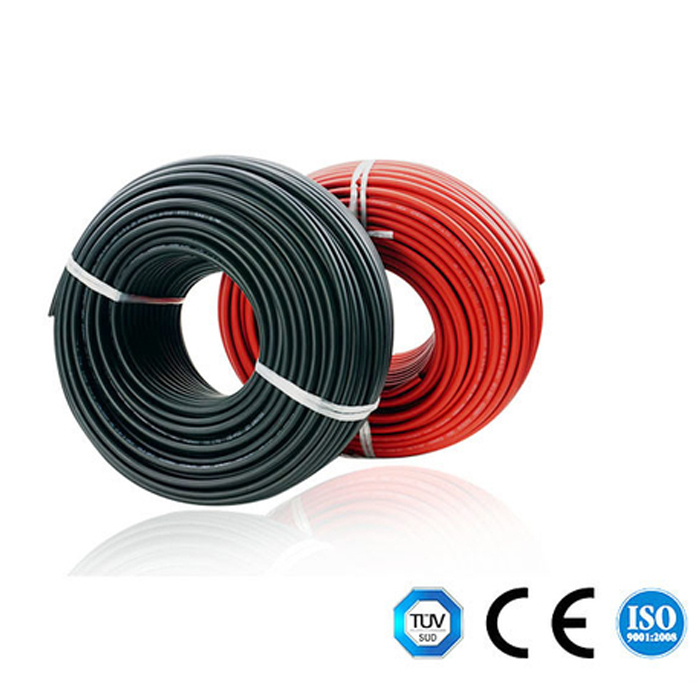

Product Image
