Durable Solar DC Cable Excellent Moisture Resistance Low Smoke Without Halogen

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x2.5mm2

Payment & Shipping Terms

Minimum Order Quantity: 250m / roll

Price: Negotiation

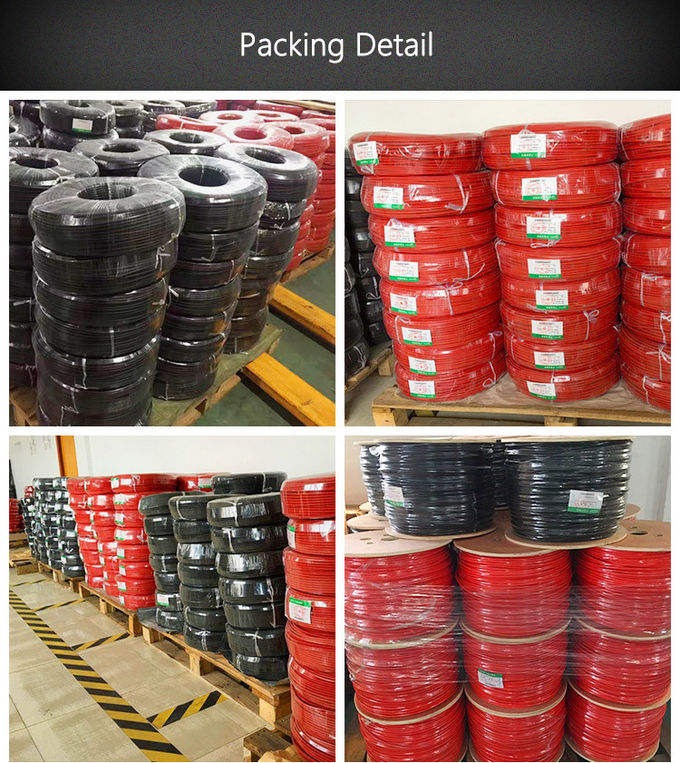

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

double insulated single core cable

,

single core electrical cable

Product Name:
2.5mm Dc Solar Cable
Structure:
49/0.25mm
Insulation Material:
XLPE
Jacket Material:
XLPE
Conductor Material:
Stranded Tinned Copper
Cable OD:
5mm
Resistance:
≤8.21(Ω/KM)
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Packing:
250m Per Roll
Product Name:
2.5mm Dc Solar Cable
Structure:
49/0.25mm
Insulation Material:
XLPE
Jacket Material:
XLPE
Conductor Material:
Stranded Tinned Copper
Cable OD:
5mm
Resistance:
≤8.21(Ω/KM)
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Packing:
250m Per Roll
Description
Durable Solar DC Cable Excellent Moisture Resistance Low Smoke Without Halogen


TUV XLPE EN50618 H1Z2Z2-K 2.5mm single core pv cable UV Resistance Tinned Copper

Outstanding Advantages :

1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved

Application :

Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
General characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,
UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.

Specification :



1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
(4) Conductor:49/0.25mm
(5) Cable OD: 5.0mm
3. Marking:Marking:
TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x2,5mm2 DC 1.5 KV NINGBO PNTECH NEW ENERGY CO.,LTD


Product NameTUV Standard Solar Cable
Model NO.H1Z2Z2-K 1x 2.5mm2
VoltageHigh Voltage Cable
Insulation MaterialXLPE
Material ShapeRound Wire
CertificationROSH, CE, TUV
StandardsTUV EN50618
Cores1 Core
Transport PackageIron-Wooden Drum, Iron Drum
ApplicationConstruction, Underground, Industrial, Power Station
Sheath MaterialXLPE
Wire Core MaterialTinned Copper
Cross Section1.5-16mm2




NamePV Cable
The product descriptionWidely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product featuresLow smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structureConductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parametersAmbient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 4mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

Pictures of 2.5mm DC Solar Cable
 Durable Solar DC Cable Excellent Moisture Resistance Low Smoke Without Halogen 0
Durable Solar DC Cable Excellent Moisture Resistance Low Smoke Without Halogen 1
