Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x2.5mm2
Payment & Shipping Terms
Minimum Order Quantity: 250m / roll
Price: Negotiation
Packaging Details: 250m per roll
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Product Name: |
2.5mm Dc Solar Cable |
Structure: |
50/0.25mm |
Insulation Material: |
XLPE |
Jacket Material: |
XLPE |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
5.3mm |
Resistance: |
≤8.21（Ω/KM） |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.8KV |
Color: |
Black / Red |
Packing: |
250m Per Roll |
Product Name: |
2.5mm Dc Solar Cable |
Structure: |
50/0.25mm |
Insulation Material: |
XLPE |
Jacket Material: |
XLPE |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
5.3mm |
Resistance: |
≤8.21（Ω/KM） |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.8KV |
Color: |
Black / Red |
Packing: |
250m Per Roll |

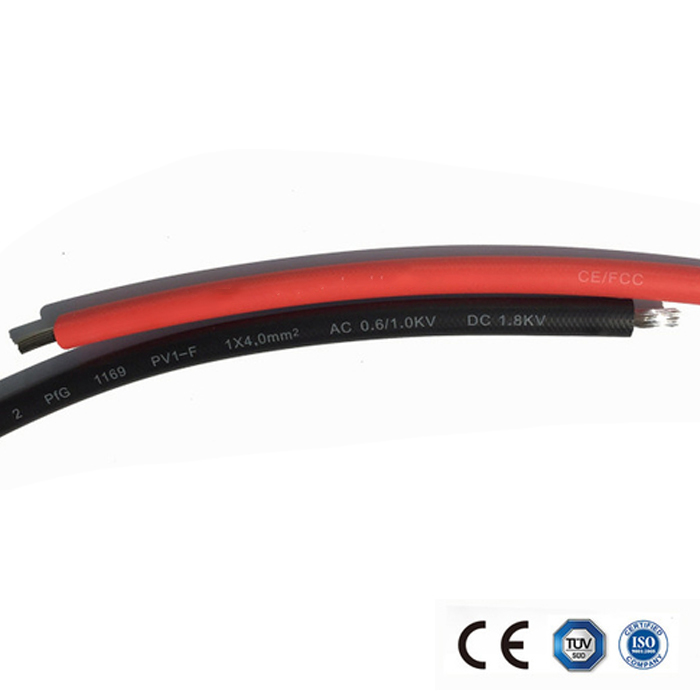

TUV XLPE 2 PfG 1169 PV1-F 2.5mm DC solar cable UV Resistance Tinned Copper
Specification :
1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
3. Marking:Marking:
TüV 2 PfG 1169 PV1-F 1×2,5mm2 AC 0.6/1.0KV DC 1.8KV NINGBO PNTECH NEW ENERGY CO.,LTD.
Outstanding Advantages :
1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
| Type | Cross | Strand | Conductor | Conductor | Outer | Rated | Rated | Weight | |
| section | design | diameter | resistance | diameter | voltage | current | |||
| mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A | Kg/km | ||
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.5 | 4.8 | 1000/1800 | 30 | 35 | |
| PV-1*2.5 mm² | 2.5 | 50x ø 0.25 | 2.0 | 8.21 | 5.3 | 1000/1800 | 41 | 50 | |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 5.09 | 6.1 | 1000/1800 | 55 | 70 | |
| PV-1*6.0 mm² | 6.0 | 84x ø 0.3 | 3.3 | 3.39 | 7.1 | 1000/1800 | 70 | 95 | |
| PV-1*10.0 mm² | 10.0 | 80x ø 0.4 | 4.4 | 1.95 | 8.5 | 1000/1800 | 98 | 155 | |
| PV-1*16 mm² | 16.0 | 120x ø 0.4 | 5.2 | 1.24 | 10.2 | 1000/1800 | 132 | 230 | |
| PV-1*25 mm² | 25.0 | 196x ø 0.40 | 7.4 | 0.795 | 12.0 | 1000/1800 | 176 | 341 | |
| PV-1*35 mm² | 35.0 | 276x ø 0.40 | 9.00 | 0.565 | 14.0 | 1000/1800 | 218 | 467 | |
Application :
Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
General characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,
UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 4mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)
