XLPE Insulated 6mm Single Core Cable 84/0.3mm With CE TUV Certification

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV1-F 1x6mm2
Minimum Order Quantity 200m / roll
Price Negotiation
Packaging Details 200m per roll
Delivery Time 3-7days
Payment Terms L/C, T/T
Supply Ability 50000m per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Material Tinned Copper Structure 84/0.3mm
Insulation Material XLPE Jacket Material XLPE
Jacket Thickness 0.8mm Cable OD 7.1mm
Resistance 3.39(Ω/KM) Rated Voltage AC Uo/U0.6~1.0KV , DC1.8KV
Color Black / Red Packing 200m / Roll
High Light

single core electrical cable

,

tuv solar cable

Leave a Message
Product Description

XLPE Insulated single core Solar cable 6mm2 CE TUV certification tinned copper



Dual wall insulation. Electron beam cross-linked
Excellent resistance to U.V., oil, greases, oxygen, water, fluids, salt, general weathering and ozone
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
CE TUV approved


Technical Data of 6mm DC single core Solar Cable



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
PV-1x6mm2 6.0mm2 84x φ0.3mm 3.3mm 3.52 Ω/km 7.1mm 1800VDC 95A



(We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores,

please consult me directly if necessary)



Wire: Copper (Class 5, tinned) UV resistance
Insulation material: XLPE High wear and abrasion resistance
Double insulation Flame test according to:
DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free Smallest permissible Bending Radius : 5 x D
High resistance against oil, greases, oxygen and ozone Temperature range: -40℃ ~ +90℃
Microde-resistant Colours: Black & Red

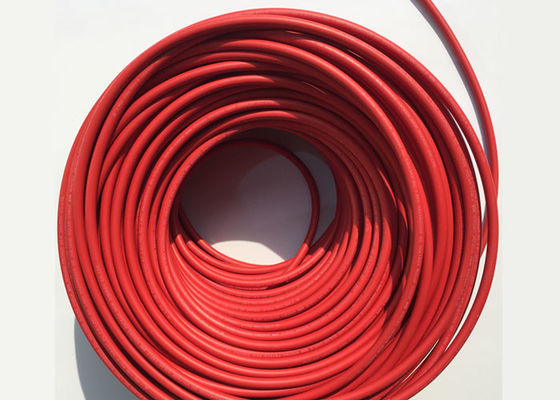

Pictures of 6mm DC single core Solar Cable



XLPE Insulated 6mm Single Core Cable 84/0.3mm With CE TUV Certification 0XLPE Insulated 6mm Single Core Cable 84/0.3mm With CE TUV Certification 1
