Black 2 Core DC Cable Low Toxicity High Voltage And Current Carrying Capacity

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV1-F 2x4mm2
Minimum Order Quantity 100m
Price Negotiation
Packaging Details 100m/roll
Delivery Time 3-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000m per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DC 2 Core Solar Cable Insulation XLPE
Sheath XLPE Conductor Tinned Copper
Struction 2*56/0.3mm Rate Voltage 1KV AC 1800V DC
Core 2 Core Color Black
High Light

2 core solar cable

,

twin core electrical cable

Leave a Message
Product Description

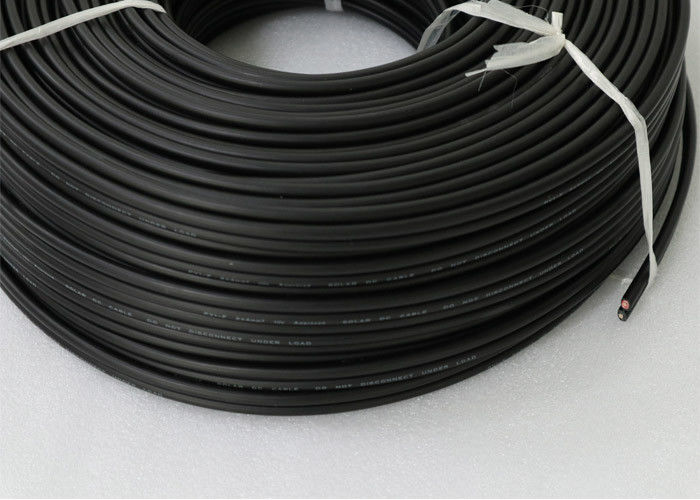

TUV PV1-F 2 PFG 1169 Flat XLPE double insulation 2x4mm2 DC 2 Core Solar cable

Description:

Cross-Section: 2×4mm2
Rated temperature: -40~90C
Rated Rating:DC:1/1.8kv AC:0.6kv
Rated Current: 41~98A
Weathering Resistance: Sun Res

Specification:



Item Unit Technical parameter
Rated temperature °C -40~90
Rated Rating ac/dc(kv) 0.6~1.0/1.8
Cable Core No. 2
Cross-Section Area mm2 2×2,5 2×4,0 2×6,0 2×10 2×16
Number/ Diameter of wires NO./mm 2*50/0.25 2*52/0.3 2*84/0.3 2*142/0.3 2*128/0.4
Thickness of the Insulation mm ≥0.5 ≥0.6 ≥0.7 ≥0.8 ≥1.0
Thickness of the Sheath mm ≥0.5 ≥0.6 ≥0.7 ≥0.8 ≥0.9
Cable OD./Flat mm 11*5 13*6 15*7 20*9 22*10
Conductor resistance(20°C) Ω/km ≤9.45 ≤7.98 ≤3.30 ≤1.91 ≤1.24
Voltage test on completed cable kV/min

6.5/5 No breakdown


Advantage:

· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion
· Halogen free, flame retardant,low toxicity
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV approved
