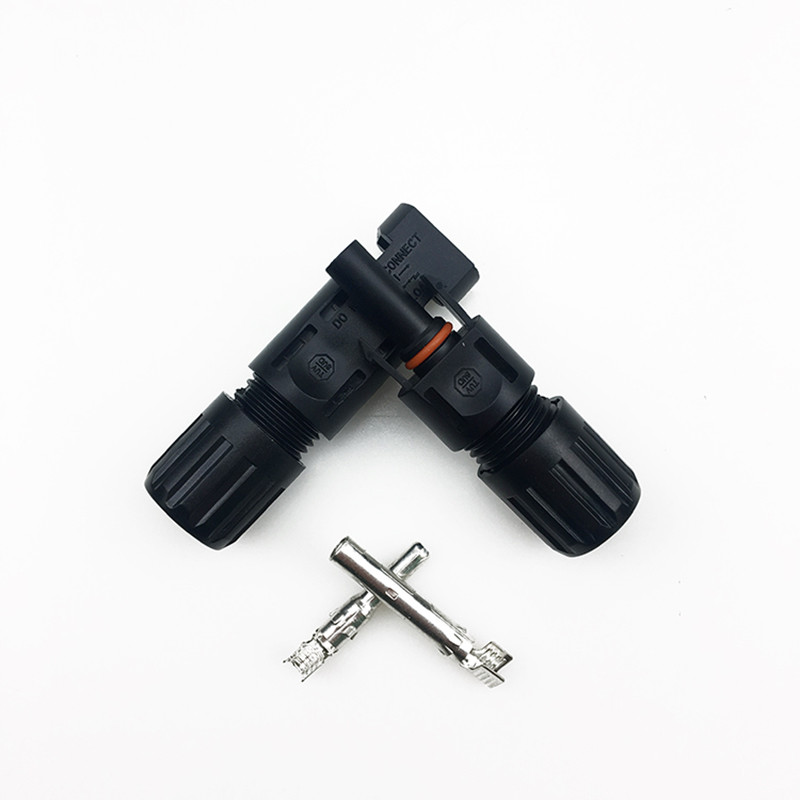

TUV 30A Polycarbon Solar PV Cable Connectors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Solar Cable Connectors | Material | PC |
|---|---|---|---|
| Gender | Female And Male | Rated Voltage | 1000VDC |
| Protection Degree | IP67 | Color | Black |
| Application | Solar Power System | Contact Material | Copper/tin Plated |
| Highlight | 1000V Solar Panel Connectors,TUV Solar Panel Connectors,Solar Panel Connectors IP67 |
||
Product Description
Ce TUV IP67 2.5mm2 4.0mm2 6.0mm2 Male/Female DC 1000V Solar Cable Connectors
Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
Easy to install Lightweight and compact, portable and easy to use; Good material make sure the transmission in the stable situation
Solar Branch Connectors are used for parallel connection between solar panels(PV modules).
SOLAR Y BRANCH CONNECTORS: 1 male to 2 female(M/FF) and 1 female to 2 male(F/MM), it is compatible
with solar connectors in 10AWG to 14AWG, it could be used for connecting two solar panels in parallel.
WATERPROOF AND DURABLE: An IP67 waterproof ring on the male connector is perfect that seal out water
and dust to prevent it from corrosion. The connector is stable and safe with the built-in lock which is
durable outdoors.
| Type: connector PV004 | |
| Electrical Features: | |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: | |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: | |
| Insulation Material | PC |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
5 pairs solar panel connectors Male & Female + 5 pairs solar connector pins (male & female) + 1 pair of spanners
Conductor pin is tinned Copper: It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load
WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
Compatible with PV cables with different insulation diameters 13-10AWG (2.5m㎡--6m㎡)
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
PV004 Photovoltaic Plug Connector
Plug connector and tools as a comprehensive solution package
Handling the plug connector is uncomplicated and intuitive: When the cable insulation has been stripped away, the metal contact is crimped and easily inserted into the plastic housing until you can clearly hear and feel the locking mechanism. After this, you only need to tighten the cable gland and the connection is fixed.

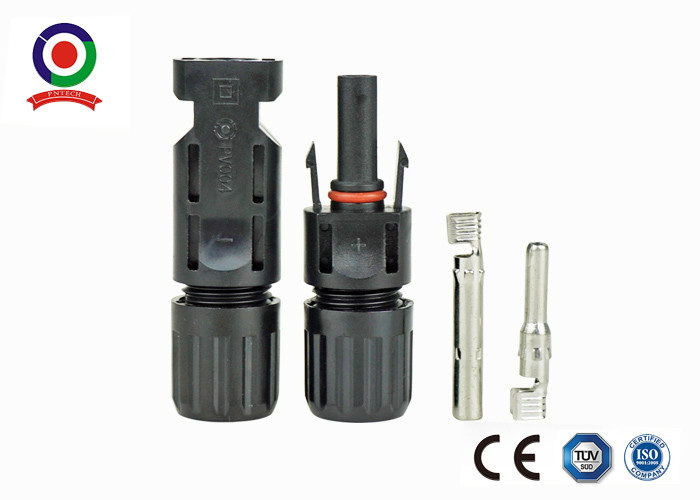

Picture of solar connector
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
