XLPE Dual Insulated 4mm Solar Cable / Solar Power Cables For Solar System

Name: XLPE Dual Insulated 4mm Solar Cable / Solar Power Cables For Solar System
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m / roll

Price: Negotiation

Packaging Details: 100m / roll 250m / roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    solar dc cable, pv dc cable


Product Name:	4mm Solar Pv Cable	Temperature Range:	-40℃～+90℃
Insulation Material:	XLPE	Structure:	56/0.285mm
Conductor Material:	Stranded Tinned Copper	Cable OD:	5.7mm
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV	Color:	Black / Red

Product Name:	4mm Solar Pv Cable
Temperature Range:	-40℃～+90℃
Insulation Material:	XLPE
Structure:	56/0.285mm
Conductor Material:	Stranded Tinned Copper
Cable OD:	5.7mm
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red

Description

XLPE Dual Insulated 4mm Solar Cable / Solar Power Cables For Solar System

H1Z2Z2-K 4mm solar pv cable XLPE dual insulated TUV EN50618 for solar system

PV Photovoltaic Cable DC Solar Power Cable Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2
PV Photovoltaic Cable DC Solar Power CableTechnical Character:
Working voltage:AC: 600/1000V DC: 900/1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 o C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120o C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km

1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3. Halogen free and low smoke, Rohs standard.
4. UV resistance.
5. Temperature rating:-40°C to 125°C, cold resistance.
6. TUV certification, TUV2Pfg1169-1.
7. Power cable for photovoltaic system.

Name: Single-core solar cable	Conductor: Tinned copper wire
Executive standard: EN 50618	Insulation: Low smoke halogen-free irradiation cross-linked polyolefin
Model: H1Z2Z2-K	Jacket: Low smoke halogen-free irradiation cross-linked polyolefin
Cable specifications:2.5/4/6/10/16/25/35mm²	Rated Voltage:1500V
Ambient temperature:-40~90ºC	Testing Voltage:6.5KV
Cable temperature:-40~120ºC	Weather resistance: UV blocking
Short circuit temperature:250ºC	Service life:>25 years
Bending radius:>4×Ø(Ø<8mm) >6×Ø(Ø≥8mm)	Color: Black, Red

Applications

Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70

Options:

Colored phase ID stripes available on request
Multi-plexing available on request

Features:

Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C

Product Name	TUV Standard Solar Cable
Model NO.	H1Z2Z2-K 1x 4mm2
Voltage	High Voltage Cable
Insulation Material	XLPE
Material Shape	Round Wire
Certification	ROSH, CE, TUV
Standards	TUV EN50618
Cores	1 Core
Transport Package	Iron-Wooden Drum, Iron Drum
Application	Construction, Underground, Industrial, Power Station
Sheath Material	XLPE
Wire Core Material	Tinned Copper
Cross Section	4mm2

Name	PV Cable
The product description	Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features	Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
	Flame retardant, cutting resistance and penetration resistance.
	Cable protection level Ⅱ level.
	With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
	It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical	1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
	2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
	3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure	Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
	25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
	Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
	Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters	Ambient temperature: - 40 ℃ ~ + 90 ℃
	The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
	Limited voltage: AC0.6/1kv dc1.8kv.

(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

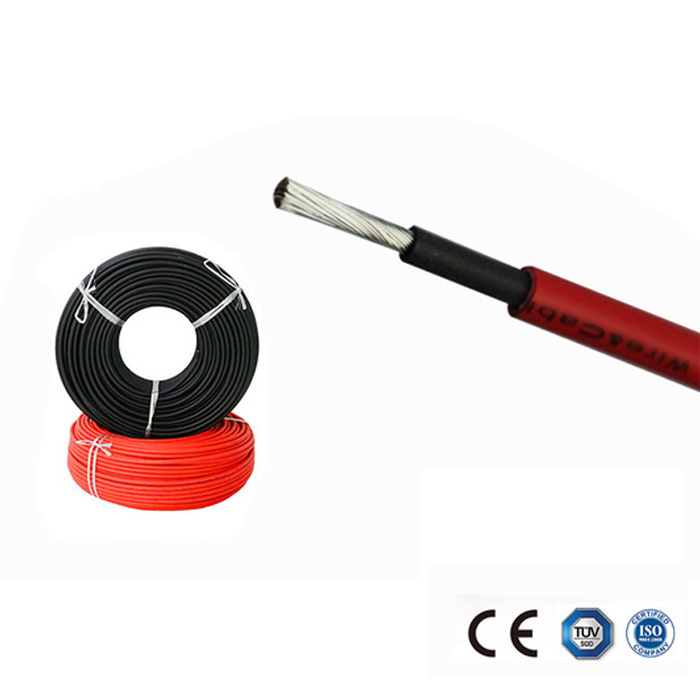

Pictures of 4mm Solar PV Cable

XLPE Dual Insulated 4mm Solar Cable / Solar Power Cables For Solar System 0
