Waterproof 3 Metres 10 Feet 4mm2 Solar Extension Cable For Systerm

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number DC-DC
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day
Product Details
Product Name 4mm2 Solar Extension Cable Cable Material XLPO
Rated Voltage 1800VDC Rated Current 30A
Contact Resistance ≤5mΩ Color Black
High Light

3 metres solar extension cable

,

10 feet solar extension cable

,

waterproof 4mm2 solar cable

You can tick the products you need and communicate with us in the message board.
Specification
Rating Voltage:
Conductor
Insulation
Sheath
Environmetal temperature
Application standards
Length (Meter)
Leave a Message
Specification
Product Description

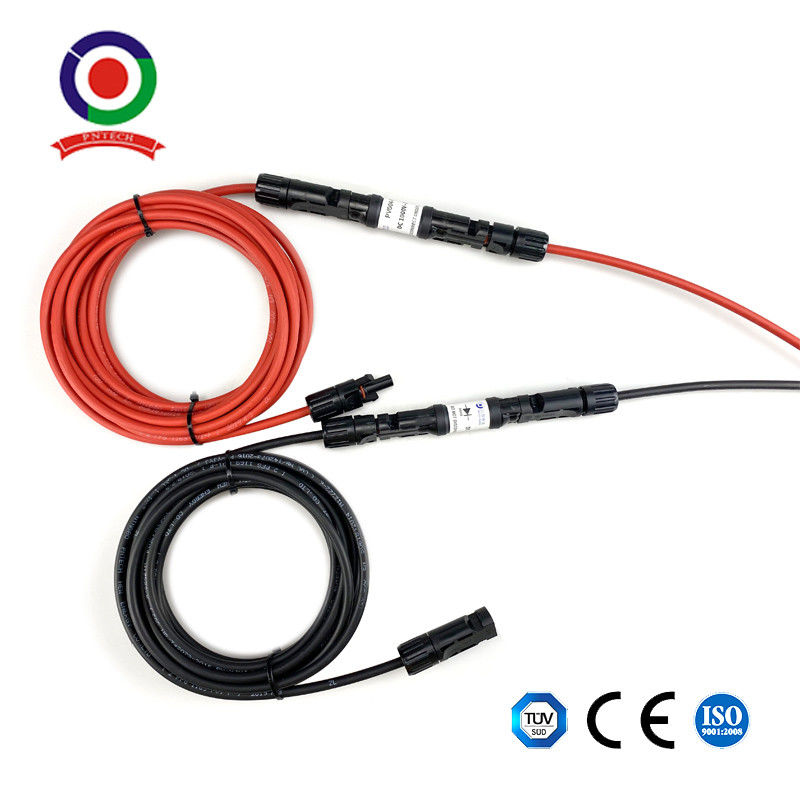

Black and Red Waterproof 3 Metres/10 Feet 4mm2 Solar Extension Cable for Systerm

Waterproof 3 Metres 10 Feet 4mm2 Solar Extension Cable For Systerm 0



Designed to runs between the solar panel and charge controller or between two solar panels, protecting solar panel.Solar panel cable is typically sold in 14, 12 and 10 AWG sizes. The solar panel cable offered in this listing is 10 AWG which is the largest diameter of the three. Using large diameter cable minimizes power loss in your solar panel system.Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.Suitable for solar power station, pv connector and pv junction box, can be easily connected to similar connectors coming with most solar panels.For the cabling between the solar moudules and as extension cable between the moudle strings and the DC/AC inverter. Photovoltaic plants and solar parks. Gable and flat roof PV systems.



Specification Condstruction (n * mm2)
2.5mm2 4.0mm2 6.0mm2 10.0mm2
Rating Voltage: 1500V
Conductor Conductor structure Class 5 Tinned copper conductor
Material Tinned copper wire(TXR)
Number of wires in conductor 50/0.28 56/0.28 84/0.28 142/0.28
Insulation Material Polyolefin copolymer electron-beam cross-linked
Insulation OD(mm) 3.85 4 4.6 6.5
Color Black
Sheath Material Polyolefin copolymer electron-beam cross-linked
Sheath OD(mm) 5.4 5.8 6.6 8
Color Black/Red
Max. Resistance AC20oC ohm/ km 8.21 5.09 3.39 1.95
60oCA Ampacity (60oCA)(A) 41 55 70 98
Environmetal temperature -40~90
Application standards EN H1Z2Z2-K
Length (Meter) Optional 1 meters/3 meters/5 meters/10 meters



Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers.

We can provide the cables as well as connectors linked with the cable.

We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery.

This solar extension cord has the powerful performance of effective protection, the waterproof rating is IP67, and the fire rating is IEC60332-1, which effectively guarantees its normal operation under severe conditions. The maximum service life can exceed 25 years (-40℃-+90℃), safe and reliable, giving you the greatest safety protection, trustworthy.



Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV


Picture of
4mm2 Solar Extension Cable

Waterproof 3 Metres 10 Feet 4mm2 Solar Extension Cable For Systerm 1Waterproof 3 Metres 10 Feet 4mm2 Solar Extension Cable For Systerm 2

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
