UV Resistance PPO Material Auto-lock Solar PV Connectors for Solar Panel Systems

Name: UV Resistance PPO Material Auto-lock Solar PV Connectors for Solar Panel Systems
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005 1500V
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV005 1500V

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            10mm2 Solar Pv Connectors, PPO Solar Pv Connectors, 1500V Solar Panel Cable Connectors


Product Name:	Solar Connector	Gender:	Male&Female
Rated Voltage:	1500VDC	Material:	PPO
Application:	Solar Energy System	Contact Resistance:	≤5mΩ
Color:	Black

Product Name:	Solar Connector
Gender:	Male&Female
Rated Voltage:	1500VDC
Material:	PPO
Application:	Solar Energy System
Contact Resistance:	≤5mΩ
Color:	Black

Description

UV Resistance PPO Material Auto-lock Solar PV Connectors for Solar Panel Systems

UV Resistance PPO DC 1500V 10mm² Solar PV Connectors

PPO Material Simple Operation 1500VDC 10mm² solar cable PV Connector

Connector Description

Multiple plugging and unplugging cycles
Highly robust, UV-Resistant construction
Insertion of reed with inner-knob type design
Auto-lock equipment for secure male and female connections
Universal appearance suitable for most field installations
Simple on-site operation
Compatible with PV cables of various insulation diameters
High current carrying capacity

Technical Specifications

Specification	Value
Voltage rating	≤DC 1500V
Current rating	≤30A(3.5-6mm²)
Pollution degree	CAT III/2
Rated power	4000W
Waterproof level	IP67
Shell material	Resistance material, PPO
Connecting system	Crimp connection
Contact resistance of plug and connectors	1MΩ
Testing voltage	DC 6000V(50Hz,1min)
Contact material	Copper, Ag plated
Flame class	UL94-V0
Safety class	II
Suitable cable	10mm²
Insertion force/withdrawal force	≤50N/≥50N
Operation temperature	-40ºC~+125ºC
Inner material	Copper tin plating
Certification	CE, RoHS, CCC

Assembly Instructions

During self assembly, parts and tools other than those stated must not be used. If the preparation and assembly instructions described here are disregarded, neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock, PV Connectors must be isolated from the power supply while being assembled or disassembled.

The end product must provide protection from electric shock.

PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67.

Product Advantages

Simple, quick, safe and effective field assembly
Independent development with innovative design and intellectual property rights
High mechanical endurance
High current and voltage carrying: 30A, 1000VDC
Low transition resistance
Innovative sealed, waterproof, dust resistance design: IP68
Excellent plastic material (UL 94-V0) with wide temperature range (-40°C to 90°C)
Weather and UV resistant for long-time outdoor application
TUV approved

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing, please call us with complete cable specifications.

2. How long is the delivery time?

Usually within 3-4 working days after payment, depending on quantity.

3. What's your payment terms?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we do.

5. Do you offer OEM & ODM?

Yes, OEM & ODM services are available.

Product Image

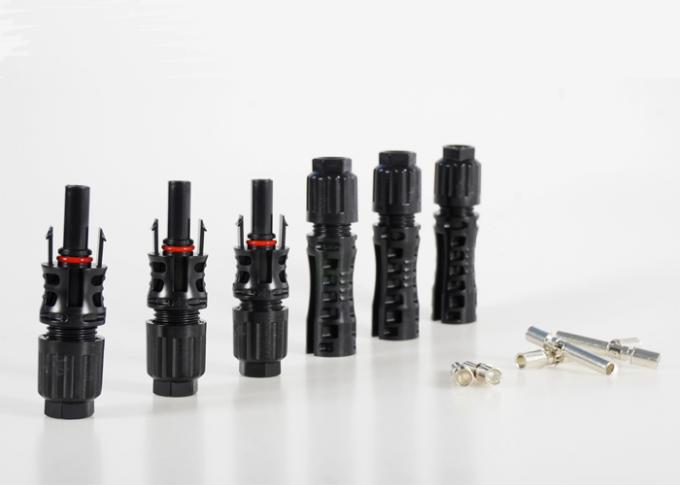

1500VDC 10mm² solar PV connector showing detailed construction and connection points
