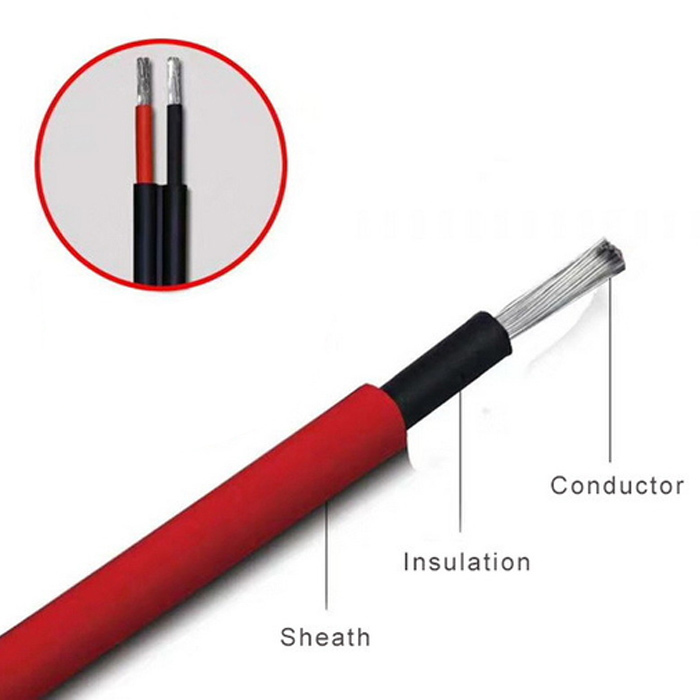

TUV 4mm Twin Core Solar Cable 1800VDC 100m Roll

Name: TUV 4mm Twin Core Solar Cable 1800VDC 100m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 2x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: PV1-F 2x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            2x4mm2 twin core solar cable, 1800vdc twin core solar cable, tuv twin core solar cable


Product Name:	4mm Twin Core Solar Power Cable	Sheath Material:	XLPO
Conductor:	Tinned Copper	Packing:	100m/roll
Resistance::	5.09 Ω/km (MAX. At 20℃)	Cable OD:	12.5 / 6.0mm
Color:	Black

Product Name:	4mm Twin Core Solar Power Cable
Sheath Material:	XLPO
Conductor:	Tinned Copper
Packing:	100m/roll
Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	12.5 / 6.0mm
Color:	Black

Description

TUV 4mm Twin Core Solar Cable 1800VDC 100m Roll

TUV Tinned Copper 1800VDC 2x4mm² Twin Core Solar Cable

Product Description

TUV Approved Tinned Copper 1800VDC PV1-F 2x4mm² Twin Core Solar PV Cable

Twin core cable is commonly used for trailer wiring applications including wiring caravan battery, auxiliary power and electric brake controllers.

Photovoltaic cable is specially designed for photovoltaic systems with characteristics of weather resistance, high temperature resistance, friction resistance, and ultra-long service life. Features high-performance insulating materials and sheath materials crosslinked by high-energy electron accelerator radiation.

Product Parameters

Item	Description & Characteristics
Product Name	Twin core solar cable PV1-F
Conductor Material	Fully annealed flexible stranded tinned copper, Class 5 per VDE 0295/IEC60228
Insulation Material	Low-smoke, Zero-Halogen Cross-linked polyolefin
Sheath Material	Low-smoke, Zero-Halogen Cross-linked polyolefin
Nominal Voltage	AC UO/U=600/1000V, DC 1000/1800V
Temperature Rating	-40℃ to 90℃
Size	2Cx2.5mm², 2Cx4mm², 2Cx6mm², 2Cx10mm²...
Bending Radius	Min. 4×D (Overall Cable Diameter)

Key Features

Dual wall insulation with electron beam cross-linking
Excellent resistance to UV, oil, greases, oxygen and ozone
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved

Technical Specifications

Construction	Conductor Construction	Insulation Thickness	Sheath Thickness	Outer ø	Resistance Max.	Current Carrying Capacity	Approx Weight
2×1.5	30/0.25	0.7	0.8	9.5±0.2	13.3	30	7.2
2×2.5	50/0.25	0.7	0.8	11±0.2	7.98	41	9.4
2×4.0	56/0.285	0.7	0.8	12.5±0.2	4.75	55	14.2
2×6.0	84/0.285	0.8	0.9	14.5±0.2	3.39	70	20
2×10.0	142/0.40	0.9	1.1	17.6±0.2	1.95	98	29
2×16.0	228/0.40	1.1	1.1	19.8±0.2	1.24	132	43

Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission: EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Additional Features

Electron beam cross-linked materials do not melt or flow, even at high temperature
High resistance against heat, cold, abrasion, UV resistant, ozone and hydrolyses
Provides interconnection between photovoltaic panels and from panels to the inverter
Operates at DC voltage with long life in exposed conditions

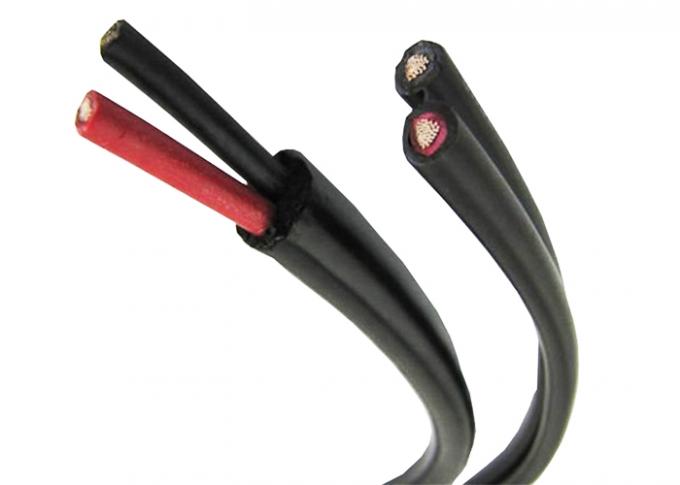

Product Image

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing, please call us with complete cable specifications.

How long about the delivery?

Usually within 3-4 working days after payment, depending on quantity.

What's your payment terms?

We accept T/T (bank transfer), L/C.

Do you accept the customized order?

Yes, we do.

Do you offer OEM & ODM?

Yes. OEM & ODM are available.
