TUV Tested DC Solar Cable 55A UV Ozone Resistance XLPE Insulation Solar System

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV1-F 1x4mm2
Minimum Order Quantity 100m
Price Negotiation
Packaging Details 250m/roll 100m/roll 500m per carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 70000m per day
Product Details
Product Name DC Solar Cable 4mm2 Voltage 600/1000V AC 1800V DC
Structure 56/0.3mm Color Black Or Red
Cable OD 6.1mm Packing 250m/roll 100m/roll
High Light

solar power cables

,

solar dc cable

Leave a Message
Product Description


DC solar cable 55A UV ozone resistance TUV tested XLPE insulation Solar System



Specificate



The product is manufactured according to the 2 PfG 1169/08.2007.The Requirements of Photovoltaic Cable standard. And our product own the TUV Certificate.

The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the JiangNan Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved.



Size Cross Section Conductor Structure Outer Diameter Max. DC Rated Rated
Resistance at 20℃ Voltage Current
mm² mm mm Ω/km V DC A
1 x 2.5mm² 2.5mm² 49 x ∅0.25 5.4 8.06 1000/1500 30A
1 x 4.0mm² 4.0mm² 56 x ∅0.285 6.1 4.97 1000/1500 50A
1 x 6.0mm² 6.0mm² 84 x ∅0.30 7.1 3.52 1000/1500 70A
1 x 10.0mm² 10.0mm² 80 x ∅0.40 8.5 2.12 1000/1500 95A



Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.





Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2  PV1 - F
25,16 and 10, 6,4,2.5 mm2  PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

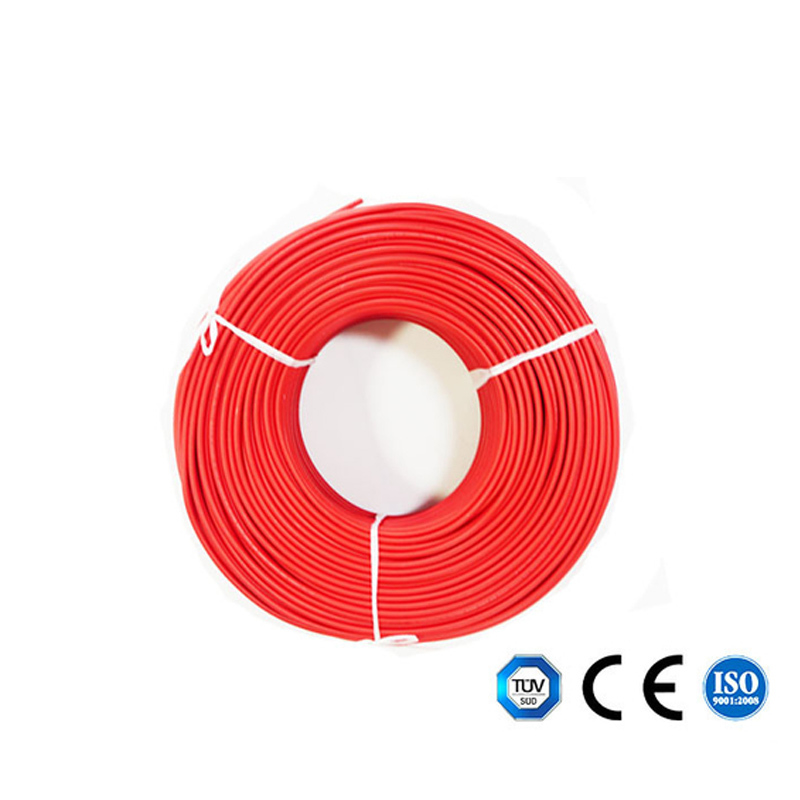

Picture of DC solar cable 4mm2
