TUV 4mm2 12AWG Solar Cable XLPE Insulation 1000m Roll

Name: TUV 4mm2 12AWG Solar Cable XLPE Insulation 1000m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 20000M

Price: Negotiation

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    12awg single core solar cable, photovoltaic single core solar cable, solar 4 mm single core cable


Product Name:	Solar Panel Cables	Structure:	56/0.285mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Jacket Thickness:	0.8mm	Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Grey / Brown/ Black/ Red	Packing:	1000m / Roll

Product Name:	Solar Panel Cables
Structure:	56/0.285mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Jacket Thickness:	0.8mm
Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Grey / Brown/ Black/ Red
Packing:	1000m / Roll

Description

TUV 4mm2 12AWG Solar Cable XLPE Insulation 1000m Roll

TUV Single Core Solar Cable Photovoltaic PV DC 12AWG 4mm² for Solar Panel

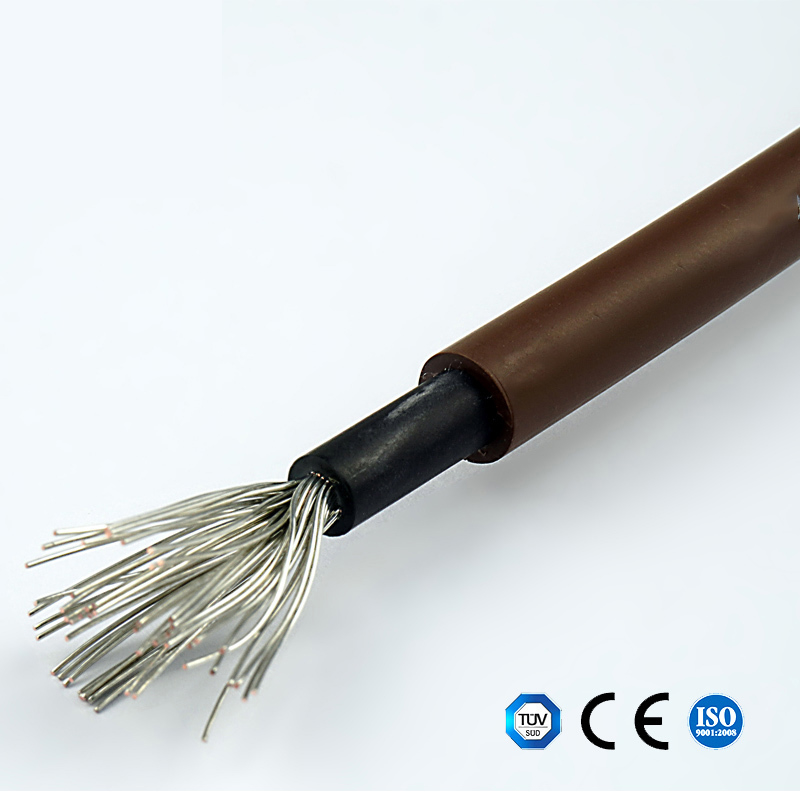

TUV certified brown photovoltaic PV DC 12AWG 4mm² solar cable designed specifically for solar panel installations.

Premium Construction & Materials

Insulation and jacket made of high-quality XLPE/XLPO material
Halogen-free, flame retardant, and low toxicity
IP68 waterproof rating for superior protection
Designed to withstand extreme temperatures from -40℃ to 90℃
Tinned copper conductor (12 AWG/4mm²) with 56 strands of 0.285mm wire
Corrosion-resistant and easy to solder

Technical Specifications

Cross Section (mm²)	AWG	Max Conductor Resistance at 20ºC (Ω)	Max Insulation Resistance at 20ºC (MΩ.km)	Current Carrying Capacity (A)
1.5	16	13.7	859	30
2.5	14	8.21	691	41
4	12	5.09	579	55
6	10	3.39	499	70
10	8	1.95	424	98
16	6	1.24	342	132

Key Features

Wire:

Copper (Class 5, tinned), UV resistant

Insulation Material:

XLPE, high wear and abrasion resistance

Double Insulation:

Flame test according to DIN EN 50265-2-1 UL1571(VW-1)

Halogen-free:

Smallest permissible bending radius: 5 x D

Temperature Range:

-40℃ to +90℃

Available Colors:

Black & Red

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call us with complete cable specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate customized orders.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.

Note: We also produce single core cables in 2.5mm², 6mm², and 10mm² sizes, as well as dual core versions. Please contact us directly for these options.
