TUV PC Insulation 12AWG 10AWG Wire Solar Terminal Connector

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV004-EN
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day
Product Details
Product Name Teminal Connector Material PC
Gender Female And Male Rated Voltage 1000VDC
Protection Degree IP67 Color Black
Application Solar Power System Contact Material Copper/tin Plated
High Light

10AWG Wire solar terminal connector

,

TUV solar terminal connector

,

12AWG Solar Terminal Connector

Leave a Message
Product Description



Ce TUV IP67 2.5mm2 4.0mm2 6.0mm2 Male/Female DC 1000V solar teminal connector



Description:



Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.



Type: connector PV004
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1000V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PC
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA



Advantage:



• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1000VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV

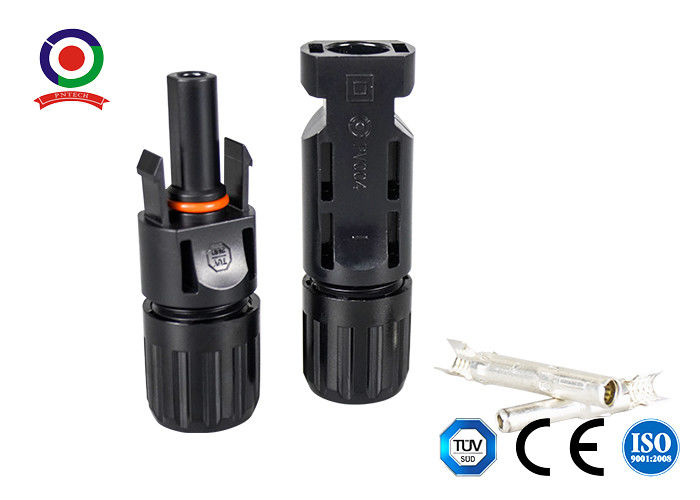

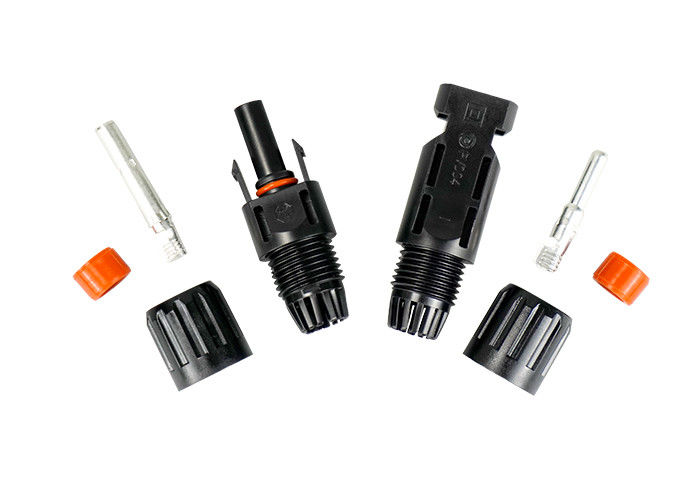

Picture of teminal connector:



TUV PC Insulation 12AWG 10AWG Wire Solar Terminal Connector 0
