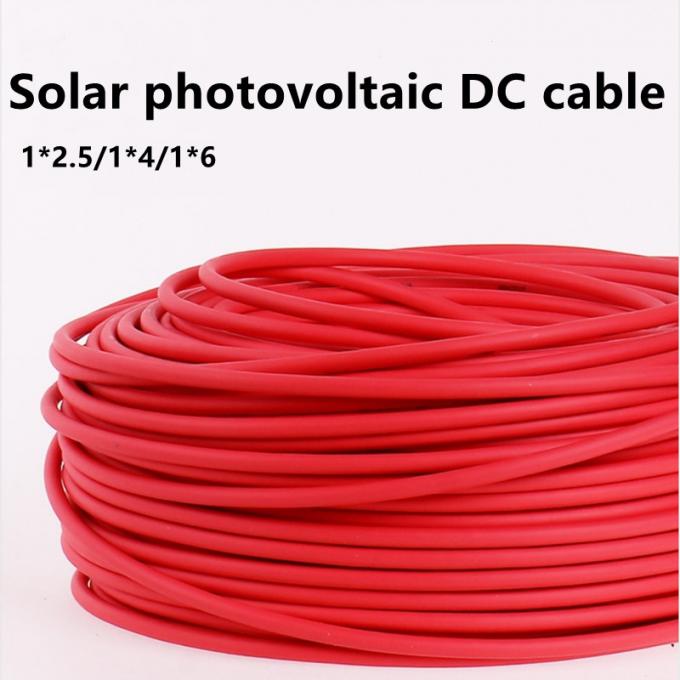

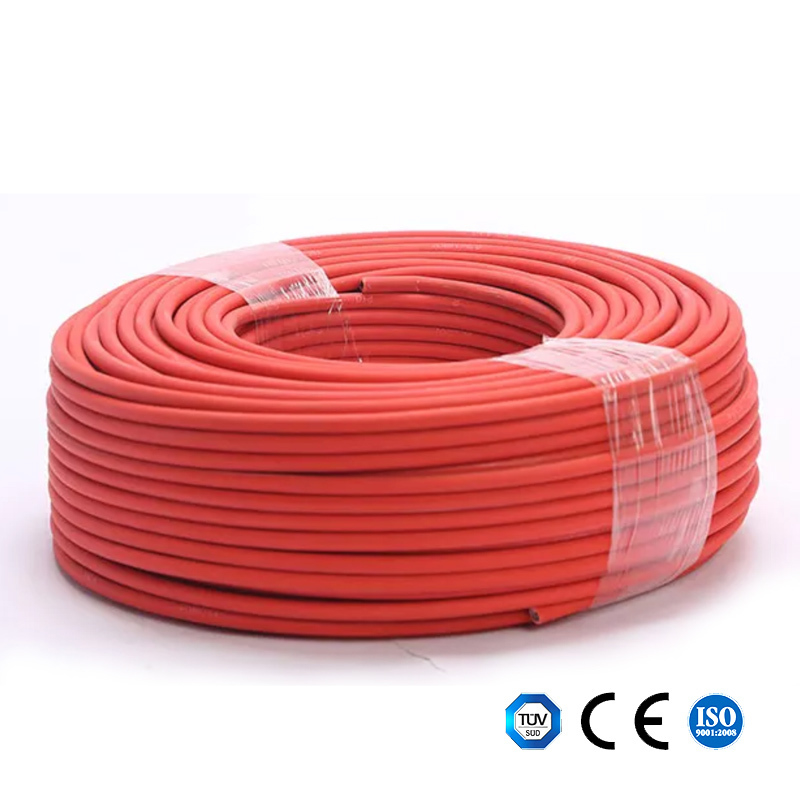

TUV Certified 4mm2 Solar Cable XLPE 5.9mm OD

Name: TUV Certified 4mm2 Solar Cable XLPE 5.9mm OD
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 250m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    tuv solar cable 4mm2, uv resistant solar cable 4mm2, en50618 pv cable 4mm2


Product Name:	Solar Cable 4mm2	Material:	XLPE
Conductor:	Tinned Copper	Construction:	56/0.28mm
Thickness:	0.8mm	Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	5.9mm	Color:	Black Or Red

Product Name:	Solar Cable 4mm2
Material:	XLPE
Conductor:	Tinned Copper
Construction:	56/0.28mm
Thickness:	0.8mm
Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	5.9mm
Color:	Black Or Red

Description

TUV Certified 4mm2 Solar Cable XLPE 5.9mm OD

TUV Certified Solar Cable 4mm² UV Resistant EN50618

TUV certified 25-year working life UV resistant EN50618 solar cable 4mm². Accepts OEM orders. We can design cables according to your specifications, with customizable colors, lengths, and connector configurations.

Key Features

Electron beam cross-linked materials resist melting and flow even at high temperatures
High resistance against heat, cold, abrasion, UV, ozone, and hydrolysis
Designed for interconnecting photovoltaic (PV) panels and connecting panels to inverters
Operates at DC voltage with long lifespan in exposed conditions

Technical Specifications

Cross Section (mm²)	Insulation Medium Thickness (mm)	Sheath Medium Thickness (mm)	Electric Resistance at 20°C (≤ Ω/km)	Testing Voltage A.C. (kv/5min)
1x1.5	0.7	0.8	13.5	6.5
1x2.5	0.7	0.8	8.21	6.5
1x4	0.7	0.8	5.09	6.5
1x6	0.7	0.8	3.39	6.5
1x10	0.7	0.8	1.95	6.5
1x16	0.7	0.8	1.24	6.5

Product Details

Certifications: TUV and CE
Standard: 2 PFG 1169 08.2007
Type: PV1-F 1x4,0mm²
Conductor Material: Stranded tinned copper
Composition (NO./mm): 56/0.3
Insulation Material: XLPE
Min. Thickness (mm): 0.5
Sheath Material: XLPE
Outer Diameter (mm): 6.10±0.2
Conductor DC Resistance: ≤5.09Ω/km
Rated Voltage: AC 0.6~1.0KV, DC1.8KV
Ambient Temperature: -40~+90°C
Expected Service Life: 25 years
Flame Rating: IEC60332-1-2

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call us with complete cable specifications for immediate pricing.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized specifications.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
