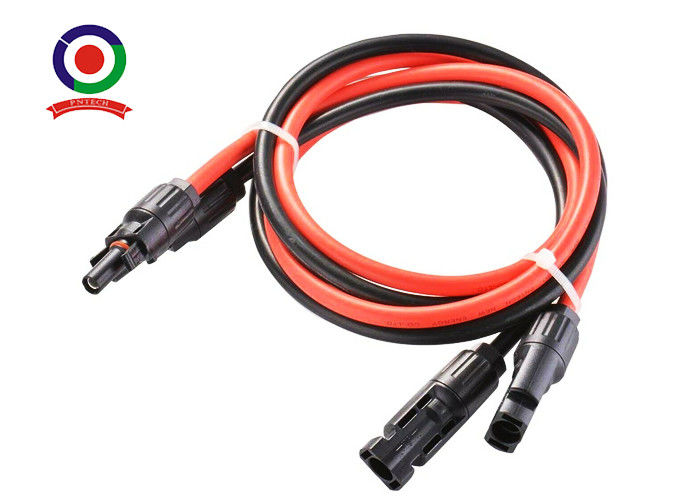

PNTECH Solar DC Extension Cable 10AWG With 30A Male And Female Exceed Connector
|Product Name||Solar Dc Extension Cable 10AWG||Cable Size||6mm2 / 10AWG|
|Rated Voltage||1000VDC||Rated Current||30A|
|Contact Resistance||≤5mΩ||Color||Black And Red|
10AWG solar extension cable,
30A solar extension cable,
solar panel extension cable 30A
PNTECH Solar DC extension cable 10AWG with 30A Male and Female Exceed Connector
Stable Male and female connectors have stable self-locking system, easy to open and close.The extension cable adopts the crimping terminal connection, with good abrasion resistance and excellent softness
High Performance The solar panel connector wire has high resistance against UV, anti-aging, water and dust proof.
The connector has high resistance against UV, anti-aging, water and dust proof. The extension cable adopts the crimping terminal connection, with good abrasion resistance and excellent softness. Male and female connectors have stable self-locking system, easy to open and close. Suitable for solar power station, PV connector and PV junction box. High quality product ensures long durability and highly safety, approved by TUV and CE. Specifications: Condition: 100% Brand New Cable Length: 1meter / 3ft, 3meters / 10ft(Optional) Cable Cross-section: 4mm², 6mm²(Optional) For Connector: Working Current: 30A Maximum Working Voltage: DC1000V Contact Resistance: ≤0.5mΩ Insulation Resistance: ＞500MΩ Working Temperature: -40 ℃~ + 105 ℃ Protection Level: IP67 Safety Level: 2 Insertion Force: ≤50N Withdrawal Force: ≥50N Insulation Material: PPO, Black Contact: Copper cn, Nickel sn Flammability Rating: UL94-VO Terminal Connection: Crimp For Cable: Cable Cross-section: 4mm² / 6mm² Cable OD Range: 4mm²: 3mm-5mm 6mm²: 5mm-7mm Rated Current: 70A Rated Voltage: 600V/1800V (AC / DC) Weight: approx. 87~289g Package Included: 1 x Solar Extension Cable with Connector.
|Specification||Condstruction (n * mm2)|
|Conductor||Conductor structure||Class 5 Tinned copper conductor|
|Material||Tinned copper wire(TXR)|
|Number of wires in conductor||50/0.28||56/0.28||84/0.28||142/0.28|
|Insulation||Material||Polyolefin copolymer electron-beam cross-linked|
|Sheath||Material||Polyolefin copolymer electron-beam cross-linked|
|Max. Resistance AC20oC ohm/ km||8.21||5.09||3.39||1.95|
|60oCA Ampacity (60oCA)(A)||41||55||70||98|
|Application standards||EN H1Z2Z2-K|
|Length (Meter)||Optional 1 meters/3 meters/5 meters/10 meters|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
Picture of solar dc extension Cable with male and female connector
