6mm2 Tinned Copper Solar Cable 1500VDC 200m Roll

Name: 6mm2 Tinned Copper Solar Cable 1500VDC 200m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m / roll

Price: Negotiation

Packaging Details: 200m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    6mm Single Core Solar Cable, 10awg Single Core Solar Cable, Oxygen Free Single Core Cable


Product Name:	Solar Panel Cable 6mm2	Structure:	78/0.3mm
Insulation Material:	XLPE	Temperature Range:	-40℃～+90℃
Conductor Material:	Stranded Tinned Copper	Cable OD:	6mm
Resistance:	≤3.39（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red	Packing:	200m Per Roll

Product Name:	Solar Panel Cable 6mm2
Structure:	78/0.3mm
Insulation Material:	XLPE
Temperature Range:	-40℃～+90℃
Conductor Material:	Stranded Tinned Copper
Cable OD:	6mm
Resistance:	≤3.39（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red
Packing:	200m Per Roll

Description

6mm2 Tinned Copper Solar Cable 1500VDC 200m Roll

Oxygen Free 10AWG 6mm Single Core Solar Cable

Energy offers TÜV approved solar cables designed for photovoltaic system interconnections. This H1Z2Z2-K 1x6mm² cable features tinned copper construction with double insulation, rated for 1500VDC and extreme environmental conditions.

Key Specifications

Voltage Rating: 600/1000V
Temperature Range: -40°C to +90°C
Conductor: 78/0.3mm tinned annealed copper
Insulation & Jacket: 90°C XLPE (black or red)
Cable OD: 6.0mm
Length: 200m

Certifications & Standards

TÜV SÜD EN 50618:2014
Ozone-resistant (EN50618)
UV-resistant (UNE-HD 605:2008)
Durability tested (EN 60216)
25-year design life
ROHS, CE, TUV certified

Applications

Designed for permanent photovoltaic installations in demanding environments including:

Indoor/outdoor solar installations
Industrial power stations
Construction sites
Underground applications
Extreme weather conditions

Technical Specifications

Parameter	Value
Model Number	H1Z2Z2-K 1x6mm²
Insulation Material	XLPE
Conductor Material	Tinned Copper
Cross Section	6mm²
Transport Package	Iron-Wooden Drum, Iron Drum

Performance Advantages

High-purity copper: 99.9% oxygen-free tinned copper for superior conductivity and corrosion resistance
Double protection: Insulation and jacket structure extends service life
Advanced materials: Environmentally friendly low-smoke halogen-free flame-retardant materials
Exceptional durability: Resistant to heat, cold, oil, abrasion, ozone and UV
Mechanical robustness: High flexibility with pressure and bending resistance
Long lifespan: >25 years in normal outdoor conditions

Electrical Characteristics

Parameter	Value
DC Resistance (20°C)	≤5.09 Ω/km
Insulation Resistance (20°C)	≥10¹⁴ Ω·cm
Insulation Resistance (90°C)	≥10¹¹ Ω·cm
Sheath Surface Resistance	≥10⁹ Ω
Max Conductor Temperature	120°C (200°C short circuit for 5s)

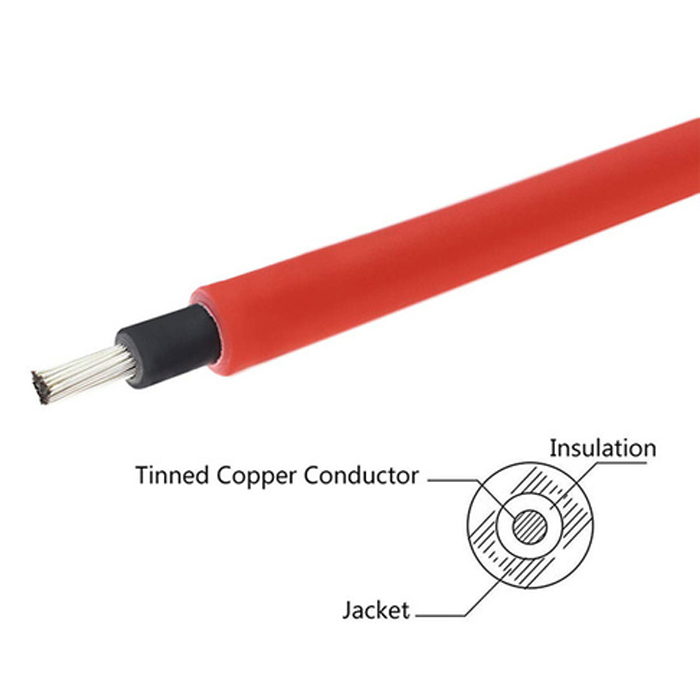

Product Image

Note: We also produce single core cables in 2.5mm², 4mm², 10mm² and 16mm² sizes, as well as dual core versions. Please contact us for these variations.
