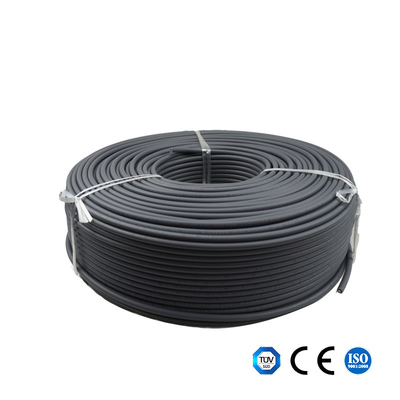

4mm Tinned Copper Solar Cable 5.5mm OD 250m Roll

Name: 4mm Tinned Copper Solar Cable 5.5mm OD 250m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 20000M

Price: Negotiation

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    grey 4mm dc solar cable, tinner copper 4mm dc solar cable, flexible 4mm solar cable


Conductor Material:	Tinned Copper	Structure:	56/0.28mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Jacket Thickness:	0.8mm	Cable OD:	5.5mm
Resistance:	5.09（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Black	Packing:	250m / Roll

Conductor Material:	Tinned Copper
Structure:	56/0.28mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Jacket Thickness:	0.8mm
Cable OD:	5.5mm
Resistance:	5.09（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Black
Packing:	250m / Roll

Description

4mm Tinned Copper Solar Cable 5.5mm OD 250m Roll

Black 4mm DC Solar Cable Tinned Copper Photovoltaic Flexible

Grey 4mm² Tinned Copper Photovoltaic Solar DC Electric Wire Flexible Cable. TUV tested cable with TUV logo print per foot, indicating compliance with TUV standards for PV solar applications.

Key Features

Tinned copper wire (12 AWG / 4mm²) with 56 strands of 0.285mm wire for corrosion protection and easy soldering
PV jacket insulation is thick, sturdy, and durable with excellent flexibility and UV resistance
Wide temperature range: -40°F to 248°F (-40°C to 120°C)
Rated voltage: 600V with resistance to acid, alkali, oil, and strong oxidation
Chemical, flame, aging, and weather resistant with excellent electrical insulation

Technical Specifications

Cross Section (mm²)	AWG	Max Conductor Resistance at 20°C (Ω)	Max Insulation Resistance at 20°C (MΩ.km)	Max Insulation Resistance at 90°C (MΩ.km)	Current Carrying Capacity (A)
1.5	16	13.7	859	0.859	30
2.5	14	8.21	691	0.691	41
4	12	5.09	579	0.579	55
6	10	3.39	499	0.499	70
10	8	1.95	424	0.424	98
16	6	1.24	342	0.342	132
25	4	0.795	339	0.339	176
35	2	0.565	287	0.287	218

Note: We also produce single core cables in 2.5mm², 6mm², and 10mm² sizes, as well as dual core configurations. Please contact us for custom requirements.

Additional Specifications

Wire: Copper (Class 5, tinned)

UV resistance: Yes

Insulation material: XLPE

High wear resistance: Yes

Double insulation: Yes

Flame test standard: DIN EN 50265-2-1 UL1571(VW-1)

Halogen-free: Yes

Minimum bending radius: 5 x D

High resistance against: Oil, greases, oxygen, ozone

Temperature range: -40℃ to +90℃

Microbe-resistant: Yes

Available colors: Black & Red

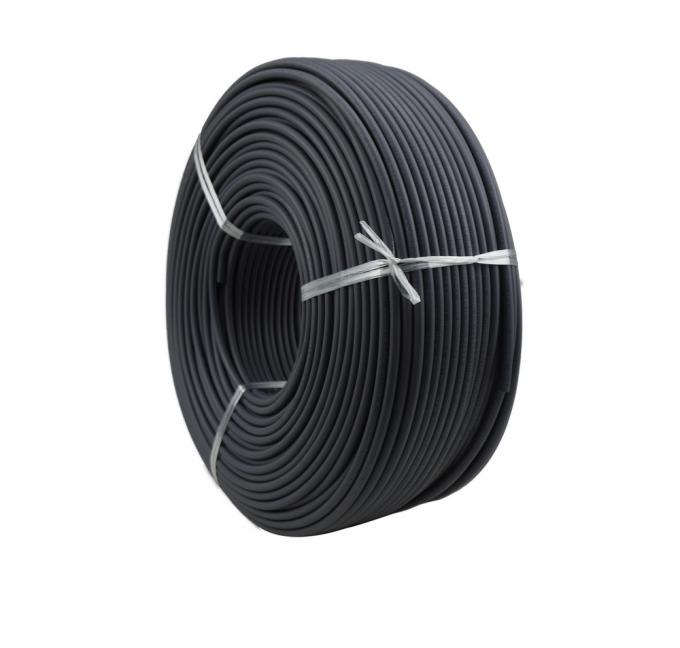

Product Image

12AWG (4mm²) DC Electric Wire Flexible Cable

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing requests, please call us with complete cable specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate custom requirements.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.
