Electrical Wires 1500V DC 6mm2 Single Core Solar Cable

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number H1Z2Z2-K 1x6mm2
Minimum Order Quantity 200m / roll
Price Negotiation
Packaging Details 200m per roll
Delivery Time 3-7days
Payment Terms L/C, T/T
Supply Ability 70000m per day
Product Details
Product Name Single Core Solar Cable 6mm2 Structure 84/0.28mm
Insulation Material XLPO Jacket Material XLPO
Conductor Material Stranded Tinned Copper Cable OD 6.6mm
Resistance ≤3.39(Ω/KM) Rated Voltage AC Uo/U0.6~1.0KV , DC1.5KV
Color Black / Red Packing 200m Per Roll
High Light

6mm2 Single Core Solar Cable

,

1500v Single Core Solar Cable

,

XLPO Single Core Solar Cable

Leave a Message
Product Description



Electrical Wires 1500V DC Voltage Weather Resistant Single Core Solar Cable 6mm2


PNTECH Energy offer a variety of TÜV approved solar cables, intended for the interconnection of various elements in photovoltaic systems.
The cable is ozone-resistant according to EN50618, UV-resistant according to UNE-HD 605:2008 (HD605/A1), tested for durability according to EN 60216 and designed to last 25 years.
H1Z2Z2-K 1x6mm2 is a single pole, double insulted 6mm² tinned copper wire in 100m length.

Technical Data:
Insulation : Halogen free cross-linked compound
Conductor : Class 5 flexible tinned copper
Current Capacity : 70A
Colour : Black
Voltage Rating : 600/1000V AC & 900/1500V DC
Test Voltage : 6.5kV AC according to EN 50618



Construction


1. Conductor:Tinned Copper, according to the VDE 0295 Class 5.
2. Insulation: Polyolefin copolymer electron-beam cross-linked.
3. Outer Sheath: Polyolefin copolymer electron-beam cross-linked.
4. Sheath Color: Black/Red/Blue or as per customer's request.




Specification :



1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C



2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPO , black
(3) Jacket:90°C XLPO, black or red
(4) Conductor:84/0.3mm
(5) Cable OD: 6.6mm



3. Marking:Marking:
TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x6,0mm2 DC 1.5 KV NINGBO PNTECH NEW ENERGY CO.,LTD



Product Name TUV Standard Solar Cable
Model NO. H1Z2Z2-K 1x 6mm2
Voltage High Voltage Cable
Insulation Material XLPO
Material Shape Round Wire
Certification ROSH, CE, TUV
Standards TUV EN50618
Cores 1 Core
Transport Package Iron-Wooden Drum, Iron Drum
Application Construction, Underground, Industrial, Power Station
Sheath Material XLPO
Wire Core Material Tinned Copper
Cross Section 6mm2



Application :



Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
General characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,
UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.



Double insulation,electron-beam cross linked cables for photovotaic power station.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)


Outstanding Advantages :



1.Dual wall insulation.Electron beam cross-linked
2.Excellent resistance to U.V,oil,greases,oxygen and ozone
3.Excellent resistance to abrasion
4.Halogen free, flame retardant,low toxicity
5.Excellent flexibility and stripping performance
6.High current carring capacity
7.TUV approved

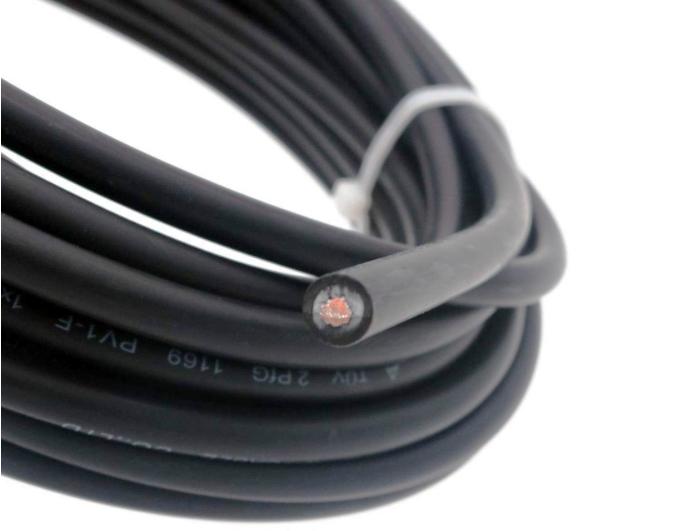

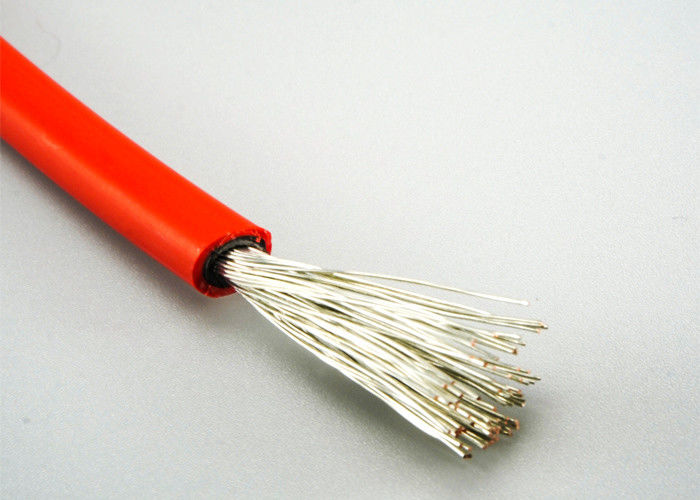

Pictures of single core solar Cable 6mm2
 Electrical Wires 1500V DC 6mm2 Single Core Solar Cable 0
