6mm Solar Extension Cable With Connector Good Abrasion Resistance Stable PV Wire

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number DC-00
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day
Product Details
Product Name Solar Extension Cable With Connector Cable Size 6mm2
Rated Voltage 1000VDC Rated Current 30A
Contact Resistance ≤5mΩ Color Black And Red
High Light

6mm solar extension cable


solar panel extension cable 6mm


TUV solar extension cable

Leave a Message
Product Description


6mm Solar Extension Cable with Connector Good Abrasion Resistance Stable PV Wire


High Performance The solar panel connector wire has high resistance against UV, anti-aging, water and dust proof.

The connector has high resistance against UV, anti-aging, water and dust proof. The extension cable adopts the crimping terminal connection, with good abrasion resistance and excellent softness. Male and female connectors have stable self-locking system, easy to open and close. Suitable for solar power station, PV connector and PV junction box. High quality product ensures long durability and highly safety, approved by TUV and CE. Specifications: Condition: 100% Brand New Cable Length: 1meter / 3ft, 3meters / 10ft(Optional) Cable Cross-section: 4mm², 6mm²(Optional) For Connector: Working Current: 30A Maximum Working Voltage: DC1000V Contact Resistance: ≤0.5mΩ Insulation Resistance: >500MΩ Working Temperature: -40 ℃~ + 105 ℃ Protection Level: IP67 Safety Level: 2 Insertion Force: ≤50N Withdrawal Force: ≥50N Insulation Material: PPO, Black Contact: Copper cn, Nickel sn Flammability Rating: UL94-VO Terminal Connection: Crimp For Cable: Cable Cross-section: 4mm² / 6mm² Cable OD Range: 4mm²: 3mm-5mm 6mm²: 5mm-7mm Rated Current: 70A Rated Voltage: 600V/1800V (AC / DC) Weight: approx. 87~289g Package Included: 1 x Solar Extension Cable with Connector.


Specification Condstruction (n * mm2)
2.5mm2 4.0mm2 6.0mm2 10.0mm2
Rating Voltage: 1500V
Conductor Conductor structure Class 5 Tinned copper conductor
Material Tinned copper wire(TXR)
Number of wires in conductor 50/0.28 56/0.28 84/0.28 142/0.28
Insulation Material Polyolefin copolymer electron-beam cross-linked
Insulation OD(mm) 3.85 4 4.6 6.5
Color Black
Sheath Material Polyolefin copolymer electron-beam cross-linked
Sheath OD(mm) 5.4 5.8 6.6 8
Color Black/Red
Max. Resistance AC20oC ohm/ km 8.21 5.09 3.39 1.95
60oCA Ampacity (60oCA)(A) 41 55 70 98
Environmetal temperature -40℃~90℃
Application standards EN H1Z2Z2-K
Length (Meter) Optional 1 meters/3 meters/5 meters/10 meters

Assembly Instructions


During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67



• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

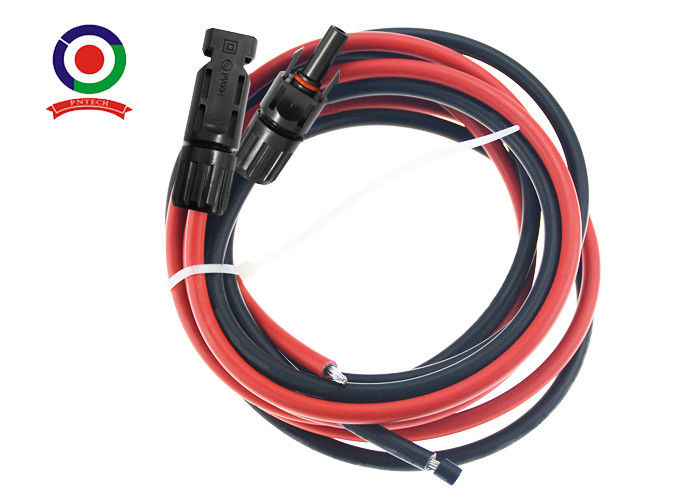

Picture of solar extension Cable with male and female connector

6mm Solar Extension Cable With Connector Good Abrasion Resistance Stable PV Wire 0

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
