6mm2 Halogen Free 1500V IEC Solar PV Cable

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number H1Z2Z2-K 1x6mm2
Minimum Order Quantity 200m
Price Negotiation
Packaging Details 200m/roll export carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 50000m per day
Product Details
Product Name 6mm2 Solar PV Cable Cross Section 10AWG
Packing 500m/roll Conductor Tinned Copper
Struction 84/0.285mm Rate Voltage 1KV AC 1500V DC
Color Black And Red
High Light

IEC Solar PV Cable

,

6mm2 Solar PV Cable

,

Halogen Free Solar PV Cable

Leave a Message
Product Description

6mm2 Copper XLPE Double Insulation Halogen Free 1500V TUV and IEC Solar PV Cable



Description:



Photovoltaic Solar H1Z2Z2-K Cable. Black, Unshielded, Single core. Intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, but not direct burial applications.



Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter. It should be characterized by its safe pulling force--50 N/sqmm.The cable’s insulation must withstand thermal and mechanical loads, and accordingly plastics been cross-linked are increasingly used today, they not only withstand severe weather conditions and are suitable for outdoor usage, but also are salt water resistant, and due to the halogen-free flame resistant cross-linked jacket material they can be used indoors in dry conditions.



Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.



Cross-Section: 1x6mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res



Specification:



TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X2.5mm2 2.5 48XΦ0.285 2 5.2 8.06 1000/1800 30
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70



Advantage:



· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved



Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.



Cables are designed to operate for a period of 20-25 years in solar power plants. The cables undergo high temperature, moisture, reptiles etc., which could harm cable and affect performance of cables and therefore the output of the plant. Ningbo Pntech New Energy Co. says, “Cable manufactures take in to consideration the stress and challenges that the cable undergoes during the product life cycle and develop cable products, maintaining highest quality standards. For cable manufactures, reliability and life span are the prime focus area. I would like to draw attention of all end users to choose product wisely so as to avoid hazardous situation and for achieving longer plant life to ensure high return on investment.”



Packing:



Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum



Delivery:



Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

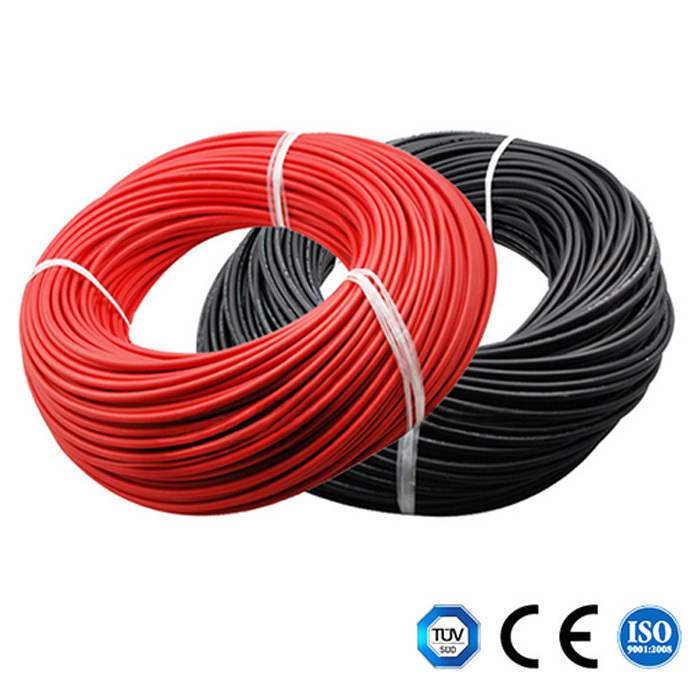

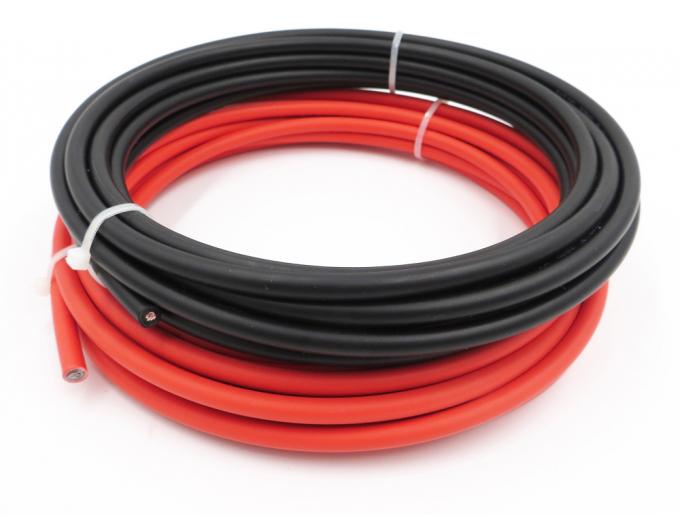

Photo of 6mm2 solar pv cable
