3 T 1 PPO Insulated 1500VDC Solar Panel Branch Connector

Place of Origin China
Brand Name Pntech
Certification CE/ISO9001
Model Number PV005-3T1
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day
Product Details
Product Name 3 T 1 Branch Solar Connector Conductor Material Tinned Copper
Rated Voltage 1500VDC Protection Degree IP67
Rated Current 30A Color Black
High Light

1500VDC solar panel branch connector

,

IP67 Solar Panel Branch Connector

,

30A Solar Panel Branch Connector

Leave a Message
Product Description



3 T 1 Branch Connector , PPO Insulated Solar Panel Branch Connector



Description:



Solar connector with high temperature, fire, anti-aging and anti-ultraviolet and other properties to meet the outdoor environment under the conditions of long-term use.

* Excellent sealing performance, waterproof and dustproof grade up to IP67.

* Male and female exchange with self-locking function, electrical connection is completely reliable, open and close freely.

* Wide range of applicability, can be inserted.



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1500V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPE
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

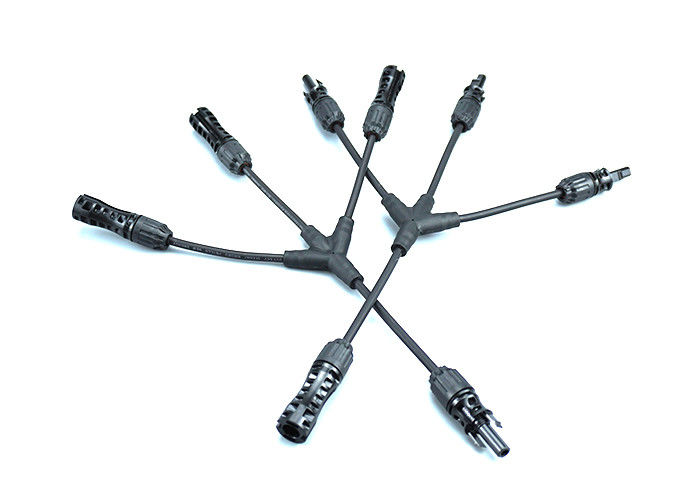

Picture of 3 T1 Branch Solar Connector

3 T 1 PPO Insulated 1500VDC Solar Panel Branch Connector 0
