1800V DC Solar PV Cable PV1-F 1169 10mm2 TUV Double XLPE Tinned Copper

Name: 1800V DC Solar PV Cable PV1-F 1169 10mm2 TUV Double XLPE Tinned Copper
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV1-F 1x10mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001/TUV/CE

Model Number: PV1-F 1x10mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, 200m per carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar dc cable, solar photovoltaic cable


Product Name:	10mm2 PV Solar Cable	Conductor Size:	80/0.4mm
Conductor:	Tinned Copper	Cable OD:	8.5mm
Packing:	100m/roll	Temperature Range:	-40℃～+90℃

Product Name:	10mm2 PV Solar Cable
Conductor Size:	80/0.4mm
Conductor:	Tinned Copper
Cable OD:	8.5mm
Packing:	100m/roll
Temperature Range:	-40℃～+90℃

Description

1800V DC Solar PV Cable PV1-F 1169 10mm2 TUV Double XLPE Tinned Copper

1800V DC Solar PV Cable PV1-F 1169 10mm² TUV Double XLPE Tinned Copper

Product Specifications

Attribute	Value
Product name	10mm² PV Solar Cable
Conductor size	80/0.4mm
Conductor	Tinned copper
Cable OD	8.5mm
Packing	100m/roll
Temperature range	-40℃～+90℃

Product Overview

This solar PV cable is designed for photovoltaic systems across multiple industries including communications, broadcast television, electrical, meteorology, transportation (railways), household appliances, and solar power plants. Its robust construction makes it ideal for challenging environments like deserts and coastal areas, withstanding significant temperature variations and humidity.

Technical Specifications

Type	Cross section (mm²)	Strand design	Conductor diameter (mm)	Conductor resistance (Ω/km)	Outer diameter (mm)	Rated voltage (VAC/DC)	Rated current (A)	Weight (Kg/km)
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.5	4.5	1000/1800	30	35
PV-1*2.5 mm²	2.5	50x ø 0.25	2.0	8.21	4.9	1000/1800	41	50
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	5.09	5.1	1000/1800	55	70
PV-1*6.0 mm²	6.0	84x ø 0.3	3.3	3.39	6.1	1000/1800	70	95
PV-1*10.0 mm²	10.0	80x ø 0.4	4.4	1.95	7.2	1000/1800	98	155
PV-1*16 mm²	16.0	120x ø 0.4	5.2	1.24	9.2	1000/1800	132	230
PV-1*25 mm²	25.0	196x ø 0.40	7.4	0.795	12.0	1000/1800	176	341
PV-1*35 mm²	35.0	276x ø 0.40	9.00	0.565	14.0	1000/1800	218	467

Key Features

Designed for solar panel wiring and connections, especially suitable for outdoor applications
Resistant to sunlight, aging, and environmental stress
Uses low smoke halogen-free flame retardant materials for enhanced safety
Excellent performance in extreme temperatures (-40℃ to +90℃)
High-grade materials ensure durability and long service life

Electrical Properties

DC resistance: ≤5.09 Ω/km at 20℃
Insulation resistance: ≥10¹⁴ Ω·cm at 20℃, ≥10¹¹ Ω·cm at 90℃
Sheath surface resistance: ≥10⁹ Ω

Cable Construction

Conductor: Tinned copper wire (2.5, 4, 6, 10, 16, 25, 35 mm² available)
Insulation: >0.5mm thick low smoke halogen-free material
Sheath: Low smoke halogen-free material thickness >0.5mm

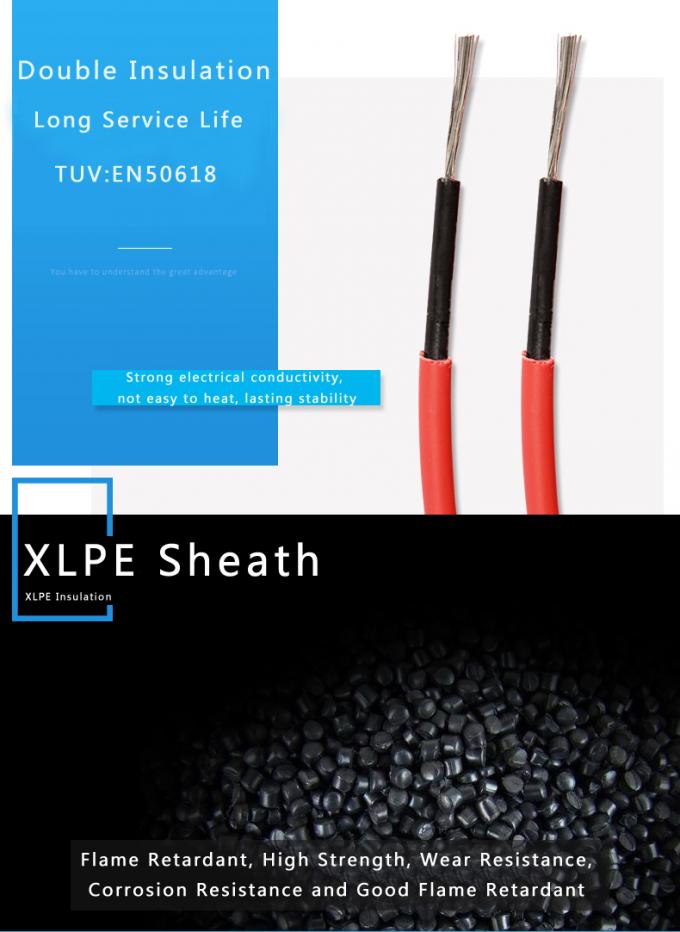

Product Image

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent requests, please call us with complete cable specifications for immediate pricing.

How long is the delivery time?

Typically 3-4 working days after payment confirmation, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate customized specifications and requirements.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.

Note: We also produce single core cables in 2.5mm², 4mm², 6mm², and 16mm² sizes, as well as dual core configurations. Please contact us directly for specific requirements.
