12AWG 4mm2 Single Core Solar Cable XLPE 250m Roll

Name: 12AWG 4mm2 Single Core Solar Cable XLPE 250m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 20000M

Price: Negotiation

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    12 awg pv cable 4mm2, single core pv cable 4mm2, single core 12 awg solar cable


Product Name:	Single Core Solar Cable 4mm2	Structure:	56/0.285mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Jacket Thickness:	0.8mm	Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）	Color:	Grey / Brown
Conductor Material:	Tinned Copper	Packing:	250m / Roll

Product Name:	Single Core Solar Cable 4mm2
Structure:	56/0.285mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Jacket Thickness:	0.8mm
Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）

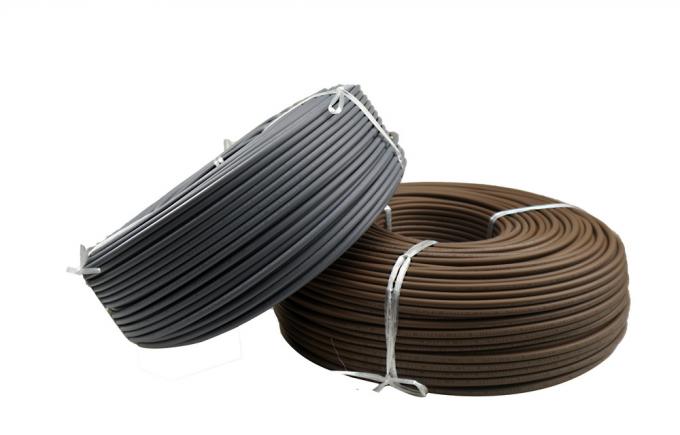

Color:	Grey / Brown
Conductor Material:	Tinned Copper
Packing:	250m / Roll

Description

12AWG 4mm2 Single Core Solar Cable XLPE 250m Roll

12AWG XLPE H1Z2Z2-K DC PV Cable 4mm² Single Core

CE TUV certified brown/grey single core 4mm² 12AWG XLPE H1Z2Z2-K DC solar cable PV wire. UV resistant and waterproof for optimal power output in high temperature conditions.

Key Features

Tinned copper wire (12 AWG/4mm²) with 56 strands of 0.285mm tinned copper for corrosion resistance and easy soldering
Thick, sturdy PV jacket insulation for durability and flexibility
UV resistant and waterproof construction
Wide temperature range: -40°F to 248°F (-40°C to 120°C)
600V rated voltage with resistance to acid, alkali, oil, and strong oxidation
Chemical, flame, aging, and weather resistant with excellent electrical insulation

Technical Specifications

Cross Section (mm²)	AWG	Max Conductor Resistance at 20°C (Ω)	Max Insulation Resistance at 20°C (MΩ.km)	Max Insulation Resistance at 90°C (MΩ.km)	Current Carrying Capacity (A)
1.5	16	13.7	859	0.859	30
2.5	14	8.21	691	0.691	41
4	12	5.09	579	0.579	55
6	10	3.39	499	0.499	70
10	8	1.95	424	0.424	98
16	6	1.24	342	0.342	132
25	4	0.795	339	0.339	176
35	2	0.565	287	0.287	218

We also produce single core cables in 2.5mm², 6mm² and 10mm² sizes, as well as dual core configurations. Please contact us for custom requirements.

Additional Specifications

Wire: Copper (Class 5, tinned)

UV resistance: Yes

Insulation material: XLPE

Wear resistance: High

Double insulation: Yes

Flame test standard: DIN EN 50265-2-1 UL1571(VW-1)

Halogen-free: Yes

Minimum bending radius: 5 x D

Resistance: Oil, greases, oxygen, ozone

Temperature range: -40℃ to +90℃

Microbe-resistant: Yes

Available colors: Black & Red

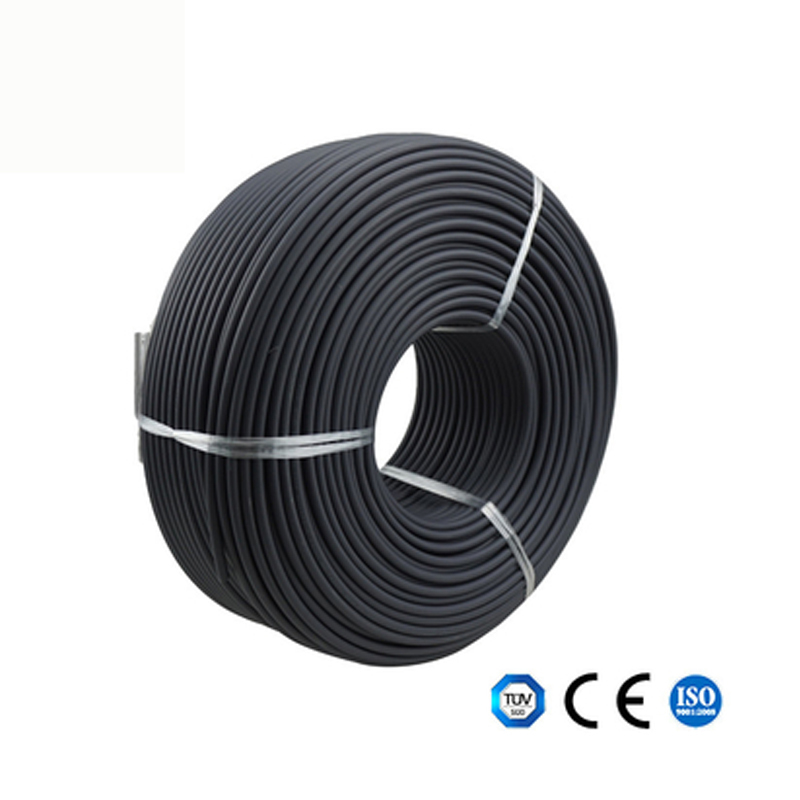

Product Image

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent pricing, please call with complete cable specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate custom requirements.

Do you offer OEM & ODM services?

Yes, OEM and ODM services are available.
