Waterproof IP67 Power MC4 Solar Panel Connectors 1000V Crimp Set Male Female

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV004-EN

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

Solar Panel Cable Connectors Waterproof

,

Power Mc4 Solar Connector

,

Male Female Solar Cable Connectors

Product Name:
POWER MC4 Connectors
Material:
PC
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Color:
Black
Application:
Solar Power System
Contact Material:
Copper/tin Plated
Product Name:
POWER MC4 Connectors
Material:
PC
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Color:
Black
Application:
Solar Power System
Contact Material:
Copper/tin Plated
Description
Waterproof IP67 Power MC4 Solar Panel Connectors 1000V Crimp Set Male Female

Waterproof IP67 1000V Crimp (Set Male + Female) POWER MC4 Connectors

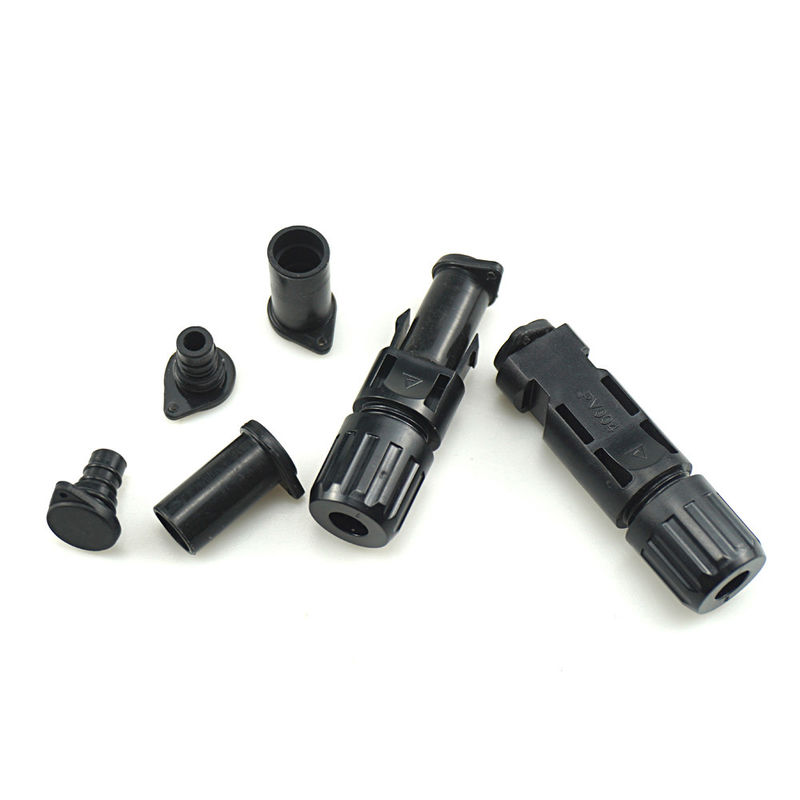

Waterproof IP67 Power MC4 Solar Panel Connectors 1000V Crimp Set Male Female 0



MC4 Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.
WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PC INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
Solar Male/Female Connectors, Compatible with different insulation diameters (2.5m㎡--6m㎡/14AWG - 10AWG).

Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.



Picture of POWER MC4 Connectors

Waterproof IP67 Power MC4 Solar Panel Connectors 1000V Crimp Set Male Female 1

Type: connector PV004
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1000V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PC
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA



Advantage:



• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1000VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
