4mm2 Single Core Solar Cable 100m Roll XLPE Insulation 1.8KV DC

Name: 4mm2 Single Core Solar Cable 100m Roll XLPE Insulation 1.8KV DC
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 20000M

Price: Negotiation

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    pv connectors single core solar cable, single core solar cable 100m, 100m solar panel connection cable


Product Name:	100m/Roll PV Cable	Structure:	56/0.285mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Jacket Thickness:	0.8mm	Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Grey / Brown/ Black/ Red	Packing:	1000m / Roll

Product Name:	100m/Roll PV Cable
Structure:	56/0.285mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Jacket Thickness:	0.8mm
Cable OD:	5.9mm
Resistance:	5.09（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.8KV
Color:	Grey / Brown/ Black/ Red
Packing:	1000m / Roll

Description

4mm2 Single Core Solar Cable 100m Roll XLPE Insulation 1.8KV DC

100m/Roll PV Single Core Solar Cable 4mm² for Solar System

OEM Grey/Brown color Power Solar Wire 100m/Roll PV Cable for Solar Connectors

Premium Quality Construction

Our solar cable features an insulation layer made of excellent PPO material, offering:

Excellent flame retardancy and self-extinguishing properties
High strength and abrasion resistance
Superior corrosion resistance

Technical Specifications

Conductor:

12 AWG (4mm²) tinned copper wire, 56 strands of 0.285mm tinned copper

Temperature Range:

-40°F to 248°F (-40°C to 120°C)

Rated Voltage:

600V

Resistance:

Chemical, flame, aging, weather resistant and electrically insulating

Technical Data of 4mm DC Single Core Solar Cable

Cross Section (mm²)	AWG	Max Conductor Resistance at 20ºC (Ω)	Max Insulation Resistance at 20ºC (MΩ.km)	Max Insulation Resistance at 90ºC (MΩ.km)	Current Carrying Capacity (A)
1.5	16	13.7	859	0.859	30
2.5	14	8.21	691	0.691	41
4	12	5.09	579	0.579	55
6	10	3.39	499	0.499	70
10	8	1.95	424	0.424	98
16	6	1.24	342	0.342	132
25	4	0.795	339	0.339	176
35	2	0.565	287	0.287	218

Note: We also produce single core of 2.5mm², 6mm² and 10mm², as well as dual cores. Please contact us for these options.

Key Features

Wire: Copper (Class 5, tinned)	UV resistance
Insulation material: XLPE	High wear and abrasion resistance
Double insulation	Flame test according to DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free	Smallest permissible Bending Radius: 5 x D
High resistance against oil, greases, oxygen and ozone	Temperature range: -40℃ ~ +90℃
Microbe-resistant	Colors: Black & Red

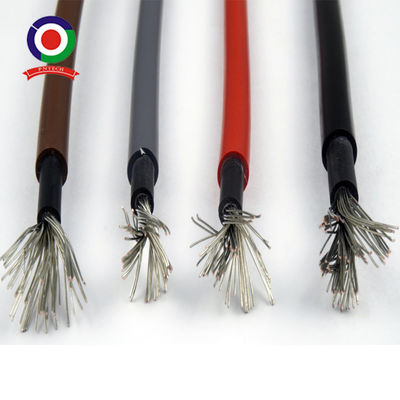

Product Image

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing, please call us with complete specifications about the cable.

How long is the delivery time?

Usually within 3-4 working days after payment, depending on quantity.

What's your payment terms?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we do.

Do you offer OEM & ODM?

Yes, OEM & ODM services are available.
