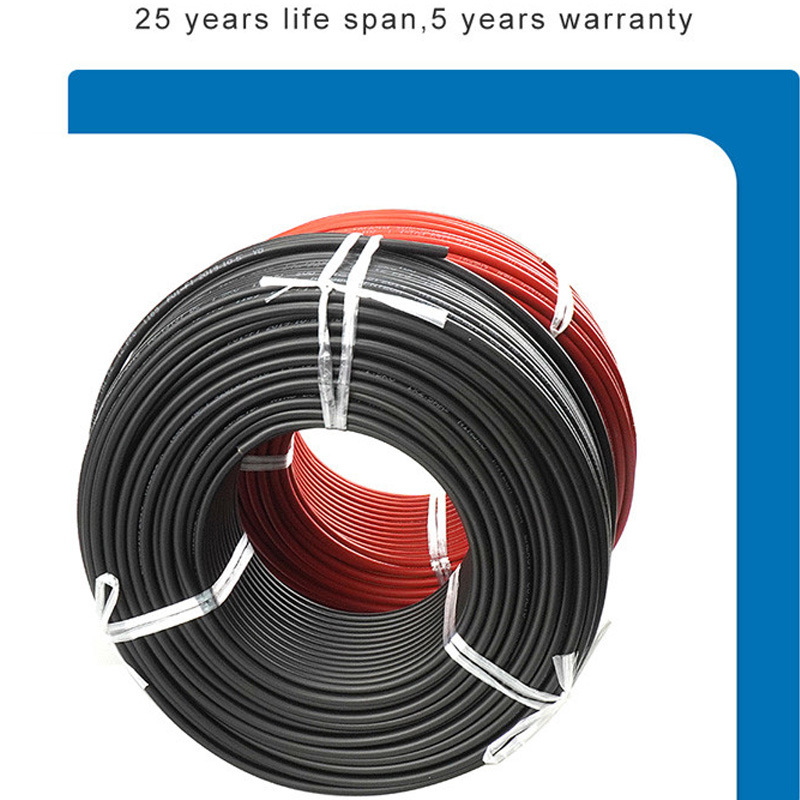

XLPO Insulated 12 AWG Solar Cable 1.5KV 100M Tinned Copper

Name: XLPO Insulated 12 AWG Solar Cable 1.5KV 100M Tinned Copper
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/CQC/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-15days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 70000 Meters per Day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    XJPO 12 Awg Pv Wire, 1.5KV 12 Awg Solar Cable, 100M 12 Awg Solar Cable


Product Name:	Flexible Wire Cable	Insulation Material:	XLPO
Conductor:	Tinned Copper	Construction:	56/0.28mm
Thickness:	0.8mm	Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	5.8mm	Color:	Black Or Red

Product Name:	Flexible Wire Cable
Insulation Material:	XLPO
Conductor:	Tinned Copper
Construction:	56/0.28mm
Thickness:	0.8mm
Resistance::	5.09 Ω/km (MAX. At 20℃)
Cable OD:	5.8mm
Color:	Black Or Red

Description

XLPO Insulated 12 AWG Solar Cable 1.5KV 100M Tinned Copper

XJPO Electric Copper Core Flexible 1.5KV 100M 12 Awg Solar Cable

XJPO Electric Copper Core Flexible Wire Cable Red and black (12AWG 1.5KV) (100M)

Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather. Single core 4mm cable for high voltage and high specification solar arrays, installs and strings. Capable of up to 1000v DC and 55A. Double insulated and TUV, CE and MCS approved. Commonly used on ON GRID inverter systems.

Each Unit equals 1 meter. (e.g. Order 5 and you will receive a 5m length, not 5 x 1m lengths)

PV Photovoltaic Cable DC Solar Power Cable Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

PV Photovoltaic Cable DC Solar Power Cable Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission: EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

PV Photovoltaic Cable DC Solar Power Cable Technical Characteristics

Working voltage: AC: 600/1000V DC: 1800V
Maximum Voltage: 1.8KV
Test Voltage: 6.5kV AC
Working Temperature: -40-90°C
Bending Radius: Fixed: 4 x overall diameter, Flexed: 5 x overall diameter
Max. Conductor temperature: 120°C
Short-circuit max. Conductor temperature: 250°C
Insulation resistance: 10 MΩ x km

Technical Specifications

Type	Cross section mm²	Strand design No.x ø (mm)	Conductor diameter mm	Conductor resistance Ω/km	Outer diameter mm	Rated voltage VAC/DC	Rated current A	Weight Kg/km
PV-1*1.5 mm²	1.5	30x ø 0.25	1.6	13.5	4.5	1000/1800	30	35
PV-1*2.5 mm²	2.5	50x ø 0.25	2.0	8.21	4.9	1000/1800	41	50
PV-1*4.0 mm²	4.0	56x ø 0.3	2.6	5.09	5.1	1000/1800	55	70
PV-1*6.0 mm²	6.0	84x ø 0.3	3.3	3.39	6.1	1000/1800	70	95
PV-1*10.0 mm²	10.0	80x ø 0.4	4.4	1.95	7.2	1000/1800	98	155
PV-1*16 mm²	16.0	120x ø 0.4	5.2	1.24	8.2	1000/1800	132	230
PV-1*25 mm²	25.0	196x ø 0.40	7.4	0.795	12.0	1000/1800	176	341
PV-1*35 mm²	35.0	276x ø 0.40	9.00	0.565	14.0	1000/1800	218	467

Key Features

Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold, abrasion, UV resistant, ozone and hydrolyses.
These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.

Product Details

Name	PV Cable
Product description	Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features	Low smoke without halogen, good cold, ultraviolet, ozone-resistant and weather-resistant Flame retardant, cutting resistance and penetration resistance Cable protection level Ⅱ level With 150℃ photovoltaic cable radiation as insulation materials

Electrical Characteristics

The dc resistance: the finished cable at 20℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
The insulation resistance: the finished insulation resistance of cable at 20℃ should not less than 1014 Ω.cm, finished cable insulation resistance at 90℃ is not less than 1011 Ω.cm
The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω

Cable Structure

Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² PV1-F
Insulation: > 0.5mm thick with low smoke and halogen material
Sheath: low smoke and halogen free material thickness > 0.5mm

Detailed Parameters

Ambient temperature: -40℃ ~ +90℃
The highest temperature of conductor: 120℃ (allow 5s in short circuit temperature 200℃)
Limited voltage: AC0.6/1kv dc1.8kv

Product Image

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. If you are very urgent to get the price, please call us to give complete specifications about the cable. Price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
