Tuv Pv Cable Dc Rated 4mm2 Crimp Wire Mc4 Compatible Connectors

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV004-EN

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

tuv mc4 compatible connectors

,

pv cable mc4 compatible connectors

,

4mm mc4 compatible connectors

Product Name:
Red And Black Solar Connectors
Material:
PC
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Color:
Black
Application:
Solar Power System
Contact Material:
Copper/tin Plated
Product Name:
Red And Black Solar Connectors
Material:
PC
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Color:
Black
Application:
Solar Power System
Contact Material:
Copper/tin Plated
Description
Tuv Pv Cable Dc Rated 4mm2 Crimp Wire Mc4 Compatible Connectors

TUV Solar Panel PV Cable DC Rated 4mm² Crimp Wire Red and Black Solar Connectors

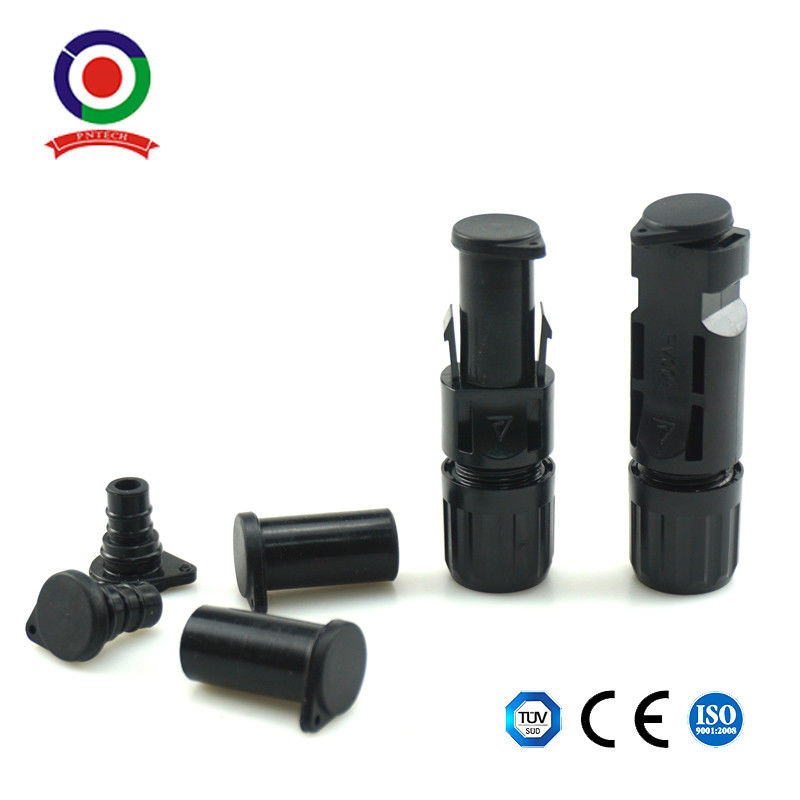

Tuv Pv Cable Dc Rated 4mm2 Crimp Wire Mc4 Compatible Connectors 0



Solar connector is most used in solar photovoltaic power generation system of a special connector, the connector (compatible with MC4 connector) is a solar pv panels in series with a parallel array module when the special connector, reliable connection rapidly, waterproof and dustproof, easy to use etc, shell has strong anti-aging, uv resistant ability, the cable connection adopts the hoops and clamping method connection, male and female head fixed with stable self-locking mechanism, open and close freely.It is an important component of solar power system.Product scientific structure, selected materials, to ensure that all mechanical and electrical properties are good.
It is recommended to use wire clamp to press the line, wiring method and order, if there is no wire clamp can also use iron clamp to press the line (preferably soldering tin).

Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.



Type: connector PV004-EN
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1000V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PC
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA



Advantage



• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1000VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV



Picture of Solar Connectors

Tuv Pv Cable Dc Rated 4mm2 Crimp Wire Mc4 Compatible Connectors 1

FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
