10awg Solar Extension Cable With Connector Wire For Solar Panel Adapter 1m
|Product Name||Solar Panel Extension 6mm Cable Wire||Cable Material||XLPO|
|Rated Voltage||1800VDC||Rated Current||30A|
10awg solar extension cable,
1m 10 awg solar cable,
1m solar extension cable
10AWG Solar Extension Cable with Connector Wire for Solar Panel Adapter 1M
PV cable assembly series,we feature the solar output cable,which is UV-resistant and durable enough to withstand poor weather conditions.with a user-friendly design,the PV output cable is also sturdy enough to resist being polled apart or disconnected.Custom PV output cables are available based on customer request.
Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers.
|Specification||Condstruction (n * mm2)|
|Conductor||Conductor structure||Class 5 Tinned copper conductor|
|Material||Tinned copper wire(TXR)|
|Number of wires in conductor||50/0.28||56/0.28||84/0.28||142/0.28|
|Insulation||Material||Polyolefin copolymer electron-beam cross-linked|
|Sheath||Material||Polyolefin copolymer electron-beam cross-linked|
|Max. Resistance AC20oC ohm/ km||8.21||5.09||3.39||1.95|
|60oCA Ampacity (60oCA)(A)||41||55||70||98|
|Application standards||EN H1Z2Z2-K|
|Length (Meter)||Optional 1 meters/3 meters/5 meters/10 meters|
We can provide the cables as well as connectors linked with the cable.
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery.
This solar extension cord has the powerful performance of effective protection, the waterproof rating is IP67, and the fire rating is IEC60332-1, which effectively guarantees its normal operation under severe conditions. The maximum service life can exceed 25 years (-40℃-+90℃), safe and reliable, giving you the greatest safety protection, trustworthy.
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

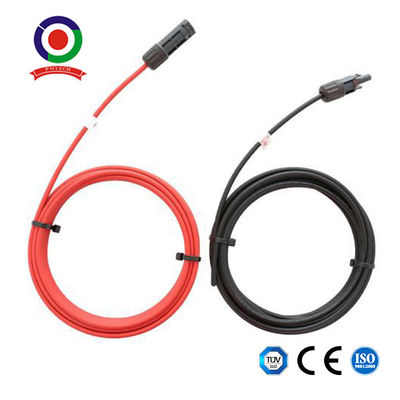

Picture of solar panel extension 10AWG 6mm cable
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
