100m TUV Stranded Oxygen Free Copper 2.5mm Twin Core Cable For Pv System

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV1-F 2x2.5mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 50000m per day

Get Best Price
Contact Now
Specifications
Highlight:

2.5mm twin core cable

,

100m twin core cable

,

1800V twin core cable

Product Name:
2.5mm Twin Core Solar Cable
Packing:
100m Per Roll
Sheath:
XLPE
Conductor:
Tinned Copper
Struction:
2*50/0.25mm
Rate Voltage:
0.6 / 1KV AC 1800V DC
Core:
2 Core
Color:
Black
Product Name:
2.5mm Twin Core Solar Cable
Packing:
100m Per Roll
Sheath:
XLPE
Conductor:
Tinned Copper
Struction:
2*50/0.25mm
Rate Voltage:
0.6 / 1KV AC 1800V DC
Core:
2 Core
Color:
Black
Description
100m TUV Stranded Oxygen Free Copper 2.5mm Twin Core Cable For Pv System



100m TUV Stranded Oxygen Free Copper 4mm2 twin core Solar Cable for solar system



Specification:



Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter. It should be characterized by its safe pulling force--50 N/sqmm.The cable’s insulation must withstand thermal and mechanical loads, and accordingly plastics been cross-linked are increasingly used today, they not only withstand severe weather conditions and are suitable for outdoor usage, but also are salt water resistant, and due to the halogen-free flame resistant cross-linked jacket material they can be used indoors in dry conditions.



Conductor Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation Polyolefin Copolymer electron-beam coss-linked
Sheath Jacket Polyolefin Copolymer electron-beam coss-linked
Nominal Voltage Uo/U=600V/1000VAC, 1000V/1800VDC
Test Voltage 6500V, 50Hz, 5Min
Temperature Rating -40°C-125°C ,More than 25 Years (TUV)
Fire Performance IEC 60332-1
Smoke Emission IEC61034, EN 50286-2
Low Fire Load DIN 51 900
Certification TUV 2PFG 1169/08 2007 PV1--F


Description:



Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5

Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169

Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169

Nominal Voltage : AC 600/1000V DC 1000/1800V

Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance

Sheath Color :Black or as per customer's requeit

Temperature Rating:45°c upto +125°c -40°F upto +257°F

Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F

Max.Short circuit temperature:280°c,+536°F

Bending Radius:Fixed installation>4X Occasionally moved>5X



TYPE:TWIN CORE SOALR CABLE PART NO:PV1-F 2X2.5mm2
CONSTRUCTION:
CONDUCTOR MATERIAL Tinned copper
CONSTRUCTION 50/0.25mm
RESISTANCE 8.21 Ω/km (MAX. at 20℃)
INSULATION MATERIAL XLPE
DIAMETER 2.0±0.1 mm
THICKNESS 0.6±0.10 mm
COLOUR Black / Red
JACKET MATERIAL XLPE
DIAMETER 11 X 5.3mm
THICKNESS 0.6±0.10 mm
COLOUR Black
Electrical Data Rated Rating AC 0.6/1KV DC1800V
Rated temperature -40 ~+90,Dry and Wet
60℃ rated current 41A
Test voltage 3.0KV AC
Weathering Resistance Sun Res.
MARKING PV1-F 2×2.5mm2 NINGBO PNTECH NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10




Advantage:


1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.

2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.

3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.

4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.

5, strong flexibility: cable has a pressure, bending, strong toughness.

6, long service life: normal outdoor use, service life> 25 years

7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.



FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

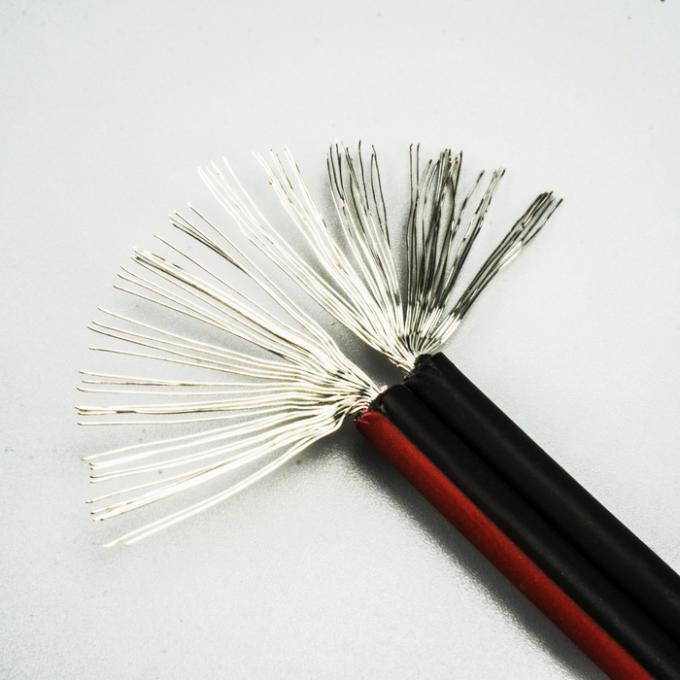

Picture of twin core solar cable 2.5mm2

100m TUV Stranded Oxygen Free Copper 2.5mm Twin Core Cable For Pv System 0
