Pressure Welding DC 1500V IP67 30A Y Branch Connector

Place of Origin China
Brand Name Pntech
Certification CE/ISO9001
Model Number PV004-2T1 1500V
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Y Solar Branch Connector Rated Voltage 1500V
Cable Length 80cm Rated Current 30A
Color Black Packing PP Bag
Highlight

30A Y Branch Connector

,

IP67 Y Branch Connector

,

1500V Solar Branch Connector

Leave a Message
Product Description



IP67 Protection 30A Rated Current Y 2 to 1 Solar Branch Connector used for HuaWei Inverter



Description:



- One end is (male and female solar cable connectors), the other end is DC 4mm2 (Outer diameter 5.9mm, inner diameter 2.1mm).

- female/male connectors allow the cable to be connected to PV panels and generator quickly.

- Waterproof and durable enough to withstand high & low temperature environment.

- Provide solid and stable connection between solar panel and solar generator, and compatible for all solar panel kits with connector.

- Simple assembling process and easy to be removed without using any extra tools.



Product Name: Y branch connector
Cable length: 80cm
Working current: 20A(4mm2), 30A(6mm2)
Withstand voltage: DC1500V
Contacting resistance: <2 mΩ
Insulation resistance: > 500MΩ
Suitable single core cable section: 2.5mm2, 4mm2, 6mm2
Cable outer diameter: Φ5mm -Φ 7mm
Ambient temperature: -40 C~ + 105 C
Protection class: IP67
Safety class: II
Shell material: PPO
Contacting material: copper, tin plated
Terminal connecting method: pressure welding
Fuse 10A,15A,20A,25A



Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

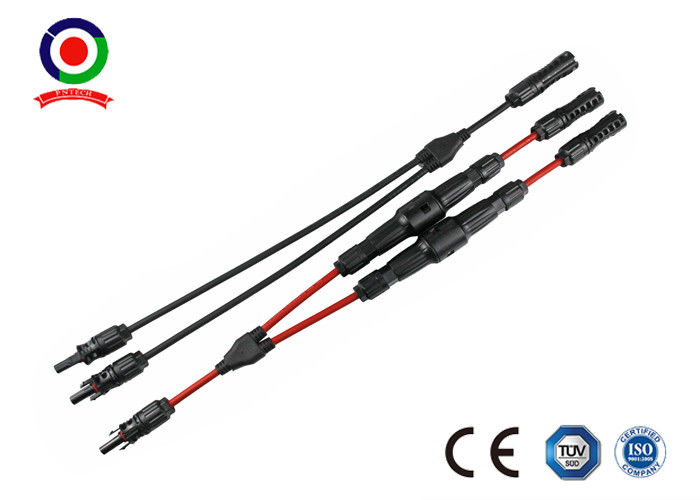

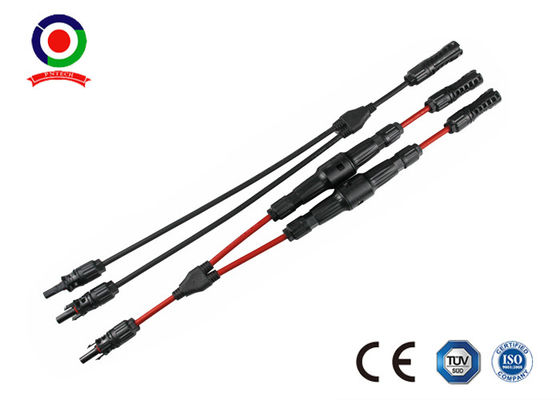

Picture of Y solar branch connector

Pressure Welding DC 1500V IP67 30A Y Branch Connector 0
