Halogen Free EN50618 PV 4mm Tinned Copper Dc Solar Wire

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m / roll

Price: Negotiation

Packaging Details: 100m per roll 500m per carton size 42x42x22cm

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

Tinned Copper Dc Solar Wire

,

4mm Dc Solar Wire

Product Name:
4mm DC Solar Cable
Voltage:
1500VDC
Cable OD:
5.9mm
Structure:
56/0.285mm
Color:
Black / Red
Packing:
100/250/500m Per Roll
Product Name:
4mm DC Solar Cable
Voltage:
1500VDC
Cable OD:
5.9mm
Structure:
56/0.285mm
Color:
Black / Red
Packing:
100/250/500m Per Roll
Description
Halogen Free EN50618 PV 4mm Tinned Copper Dc Solar Wire


Tinned Copper Double XLPE TUV EN50618 H1Z2Z2-K 1x4mm DC solar cable


Certificate

EN50618:2016 by TUV

Packing

Packaging: 4mm PV cable, 100 meters/roll, 100rolls per pallet;

500 meters/roll, 20 rolls per pallet.

20 pallets in one 20FT container. Other type can be customized



Item No. Product Model Rated Conductor cross Strand design Conductor Outer-Ømm Sheath
Name Voltage section mm 2 Number x Ø mm resistance Color
        Ω / km 20°C
H1Z2Z2-K 1x4mm PV Cable H1Z2Z2-K 1500VDC 1X4,0 56/0.285 5.09 5.6±0.1mm Black
H1Z2Z2-K 1x4mm PV Cable H1Z2Z2-K 1500VDC 1X4.0 56/0.285 5.09 5.6±0.1mm Red

Application

Halogen free cross-linked polyolefin double layers photovoltaic cables for use at the photovoltaic power systems. This cable can match with most PV-com¬ponents like PV-junction boxes and PV-connectors, which have a rated voltage of 1500 V DC.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

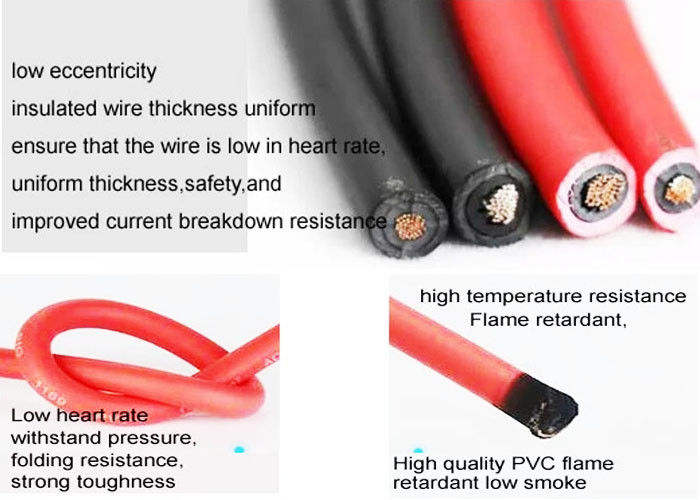

Pictures of 4mm DC Solar Cable

Halogen Free EN50618 PV 4mm Tinned Copper Dc Solar Wire 0
