Safe Class 2 Solar Panel Connector with Tinned Copper Terminal and PPO Material for Reliable Solar System Connection

Name: Safe Class 2 Solar Panel Connector with Tinned Copper Terminal and PPO Material for Reliable Solar System Connection
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005 1500V
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV005 1500V

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar pv connectors, solar cable connectors


Application:	Solar System Connection	Gender:	Male And Female
Product Name:	Connector	Material:	PPO
Rated Voltage:	1500VDC	Rated Current::	30A

Application:	Solar System Connection
Gender:	Male And Female
Product Name:	Connector
Material:	PPO
Rated Voltage:	1500VDC
Rated Current::	30A

Description

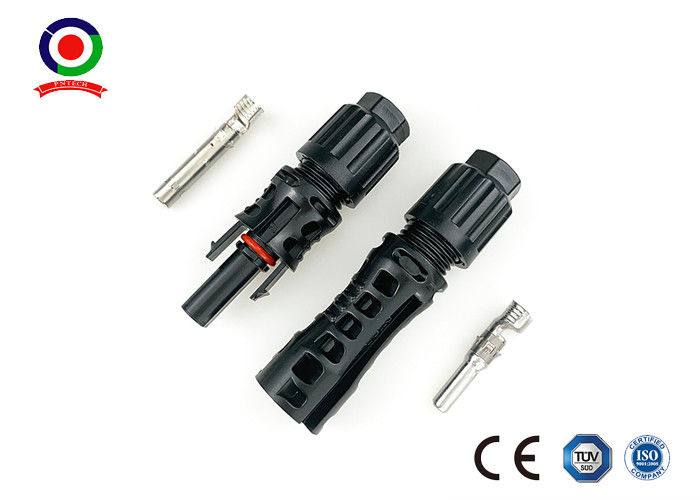

Safe Class 2 Solar Panel Connector with Tinned Copper Terminal and PPO Material for Reliable Solar System Connection

Compatible Connector 30A Rated Current Tinned Copper Hardware Terminal

IP67 Waterproof Compatible Connector 1500V For Long Time Outdoor Application

Connector Specifications

Plastic part material: PPO
Rated voltage: 1500V DC
Rated current: 30A
Contact resistance ≤ 0.5MΩ
Safe class: class 2
Temperature range: -40°C to +85°C
Section area of cable: 2.5, 4, 6mm²
Degree of protection: IP67
Flame class: UL94-V0
Hardware terminal: tinned copper

Specification	Value
Voltage rating	≤DC 1500V
Current rating	≤30A (3.5-6mm²)
Pollution degree	CAT III/2
Rated power	4000W
Waterproof level	IP67
Shell material	Resistance material, PPO
Connecting system	Crimp connection
Contact resistance of plug and connectors	1MΩ
Testing voltage	DC 6000V (50Hz, 1min)
Contact material	Copper, Ag plated
Flame class	UL94-V0
Safety class	II
Suitable cable	OD4.5-8.5 (2.5-6.0mm²)
Insertion force/withdrawal force	≤50N/≥50N
Operation temperature	-40ºC to +125ºC
Inner material	Copper tin plating
Certificate	CE, RoHS, CCC

Assembly Instructions

During self-assembly, if parts and tools other than those specified are used or if the preparation and assembly instructions described here are disregarded, neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock, PV Connectors must be isolated from the power supply while being assembled or disassembled.

The end product must provide protection from electric shock.

PV plug connections must not be unplugged while under load. They can be placed in a no-load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67.

Product Advantages

Simple, quick, safe and effective field assembly
Independently developed, innovative design with independent intellectual property rights
High mechanical endurance
High current and voltage carrying: 30A, 1000VDC
Low transition resistance
Innovative sealed, waterproof, dust resistance design: IP68
Excellent plastic material, UL 94-V0, wide temperature range: -40°C to +90°C, weather and UV resistant for long-time outdoor application
Approved by TUV

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. If you urgently need the price, please call us with complete specifications about the cable for immediate pricing.

2. How long is the delivery time?

Usually within 3-4 working days after payment, depending on quantity.

3. What are your payment terms?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we do.

5. Do you offer OEM & ODM services?

Yes, OEM & ODM are available.

Tags:

Black Color PPO Solar Panel Connectors with Cromp Connection Copper Ag Plated Contact for Weather Resistant Solar PV Modules

Get Best Price

TUV Certified MC4 Connectors with Copper/Tin Plated Contacts PPO Insulation and UV Resistant for Solar Panel Applications

Get Best Price

Please send us your request and we will reply to you as soon as possible.

Send

Solar PV Cable

Single Core Solar Cable

Twin Core Solar Cable

Solar Cable Harness

DC Solar Cable

PV Junction Box

Solar Panel Connectors

Solar Branch Connector

Solar Diode Connector

Solar Fuse Connector

Solar Panel Optimizer

Rapid Shutdown Device

Solar Power Cable

Solar Tools

Solar Power Panel

Safe Class 2 Solar Panel Connector with Tinned Copper Terminal and PPO Material for Reliable Solar System Connection

solar pv connectors

solar cable connectors

solar cable connectors,

solar pv connectors,

plug socket connector

TUV Certified Copper Silver Plated UL94-V0 Flame Retardant MC4 Solar Panel Connectors

Black Color PPO Solar Panel Connectors with Cromp Connection Copper Ag Plated Contact for Weather Resistant Solar PV Modules

High Robustness UV Resistant Solar Panel Connectors with Strong Current Carrying Capacity

TUV Certified Solar Panel Connectors with Low Contact Resistance Weather and UV Resistant for 14AWG 12AWG 10AWG Cable

Solar Cable Connector with Copper Tin Plated Contacts IP67 Dustproof and Quick Installation for Solar Energy Systems

Dust Resistance PPO Material Solar Panel Connectors for Long Time Outdoor Application

Robust 4000W Solar PV Connector with PPO Material and Low Resistance Contact for Solar Power Systems

TUV Certified MC4 Connectors with Copper/Tin Plated Contacts PPO Insulation and UV Resistant for Solar Panel Applications

1500VDC Solar Panel Connectors with Auto-lock Equipment and Low Transition Resistance for Reliable PV Systems

Black Solar Panel Connectors with 6KV Test Voltage ≤5mΩ Contact Resistance and -40ºC~+125ºC Temperature Range

TUV Approved 2.5mm 4mm 6mm Male and Female Solar PV Connector IP67 1500V DC 30A Dust Resistant UL94-V0
