Double Insulated Dc Cable For Solar Pv Tinned Annealed Copper Stranded 1500V

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: ISO9001/TUV/CE

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll, 500m per carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

solar power cables

,

solar system cable

Product Name:
PV Cable 4mm2
DC Voltage:
1500V
Conductor:
56/0.285
Color:
Black Or Red
Weight:
68kg/km
Packing:
100m/roll
Product Name:
PV Cable 4mm2
DC Voltage:
1500V
Conductor:
56/0.285
Color:
Black Or Red
Weight:
68kg/km
Packing:
100m/roll
Description
Double Insulated Dc Cable For Solar Pv Tinned Annealed Copper Stranded 1500V



Tinned annealed copper stranded 1500V Double Insulated Solar PV Cable 4mm2 XLPE



Specificate



Dual Wall insulation , Electron beam cross-linked
Excellent reslstance to U.V.,water.ozone, flulds; salt.General Weathering
Excellent resistance to abrasion
Halogen free,flame retardant,low toxicity
Excelent flexibility and strippn performance
High current carrying capacity
TUV approved



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
H1Z2Z2-K 1x2.5mm2 2.5mm2 36x φ0.285mm 2.0mm 8.21 Ω/km 5.4mm 1500VDC 50A
H1Z2Z2-K 1x4mm2 4mm2 56x φ0.285mm 2.6mm 5.09 Ω/km 5.9mm 1500VDC 70A
H1Z2Z2-K 1x6mm2 6mm2 78x φ0.285mm 3.3mm 3.52 Ω/km 6.7mm 1500VDC 95A
H1Z2Z2-K 1x10mm2 10mm2 80x φ0.4mm 4.4mm 1.95 Ω/km 7.4mm 1500VDC 98A
H1Z2Z2-K 1x16mm2 16mm2 120x φ0.4mm 5.2mm 1.24 Ω/km 9.2mm 1500VDC 132A



Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.





Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

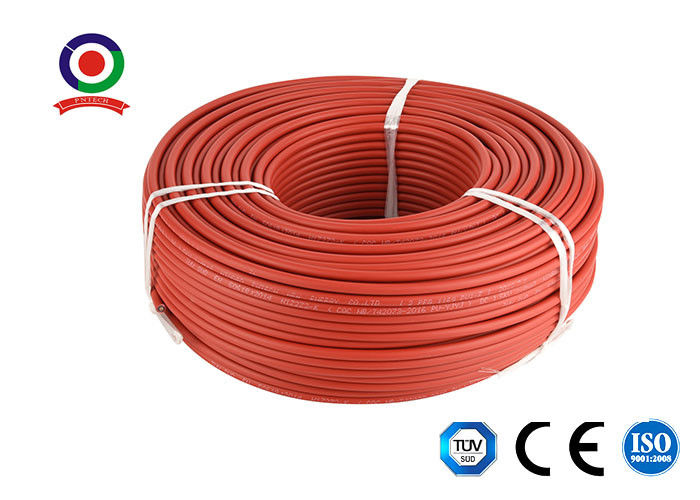

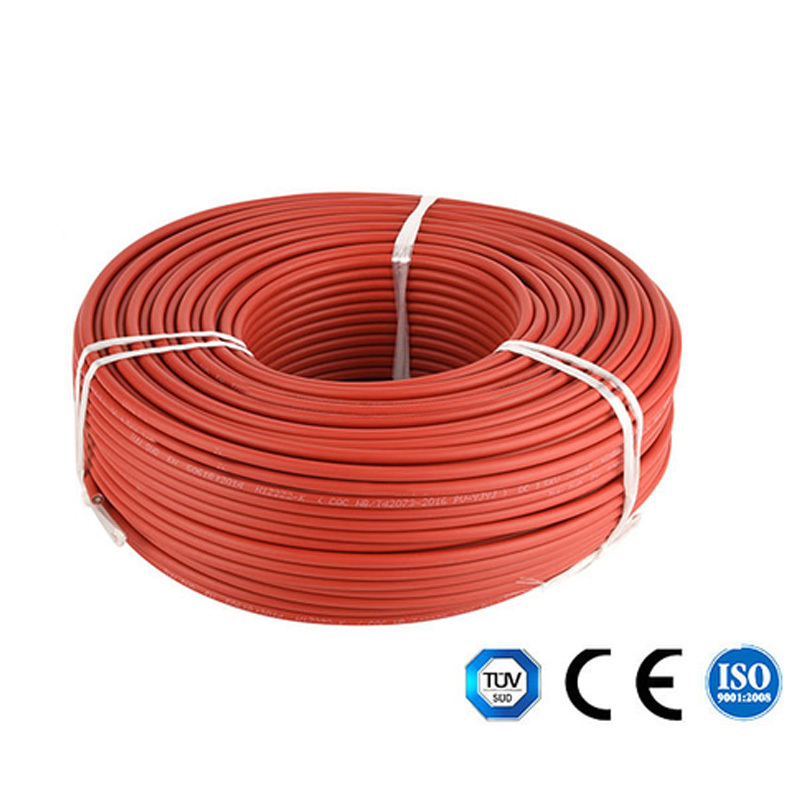

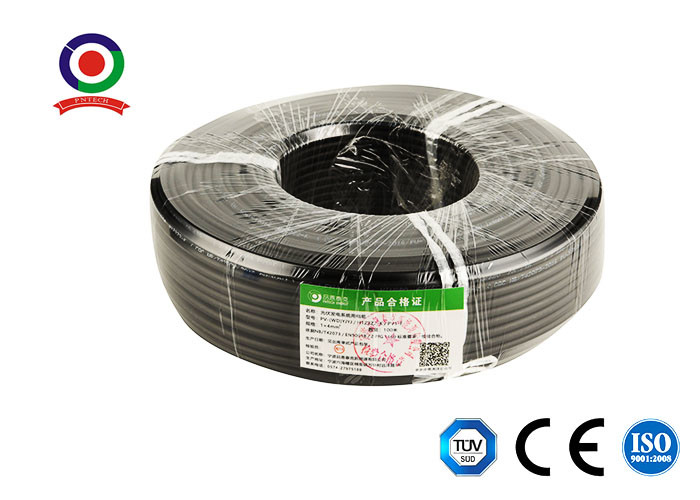

Picture of solar PV cable 4mm
