Product Name: |
4mm PV Solar Cable |
Test Voltage: |
AC 6.5KV |
Conductor: |
Tinned Copper |
Cable OD: |
5.9-6mm |
Packing: |
100m/roll |
Temperature Range: |
-40℃～+90℃ |
Product Name: |
4mm PV Solar Cable |
Test Voltage: |
AC 6.5KV |
Conductor: |
Tinned Copper |
Cable OD: |
5.9-6mm |
Packing: |
100m/roll |
Temperature Range: |
-40℃～+90℃ |
TUV RoHS H1z2z2K UV Resistant -40 Degree 4mm PV Solar Cable Red and black 100m
Product description
Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.
Technical Data
--Temperature Rating: -40°C to 90°C
--Conductor AWG: 12 to 2000 AWG
--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
--Separator: Paper Tape
--Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
--Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated,flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
--Min. Bend Radius: 8x Diameter
| Product Code Number | Size(mm2) | Conductor dia. N/mm | Insulation dia.(mm) | Nominal Jacket dia.(mm) | Net Weight/1000 meter(kg) |
| PV1-F 1x1.5mm2 | 1.5 | 30/0.25 | 3.1 | 4.7 | 39 |
| PV1-F 1x2.5mm2 | 2.5 | 49/0.25 | 3.6 | 5.3 | 48 |
| PV1-F 1x4mm2 | 4 | 56/0.285 | 4.1 | 5.8 | 68 |
| PV1-F 1x6mm2 | 6 | 84/0.285 | 4.7 | 6.4 | 88 |
| PV1-F 1x10mm2 | 10 | 80/0.40 | 5.6 | 7.5 | 132 |
| PV1-F 1x16mm2 | 16 | 126/0.40 | 7.55 | 10.2 | 205 |
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F |
| 25,16 and 10, 6,4,2.5 mm2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

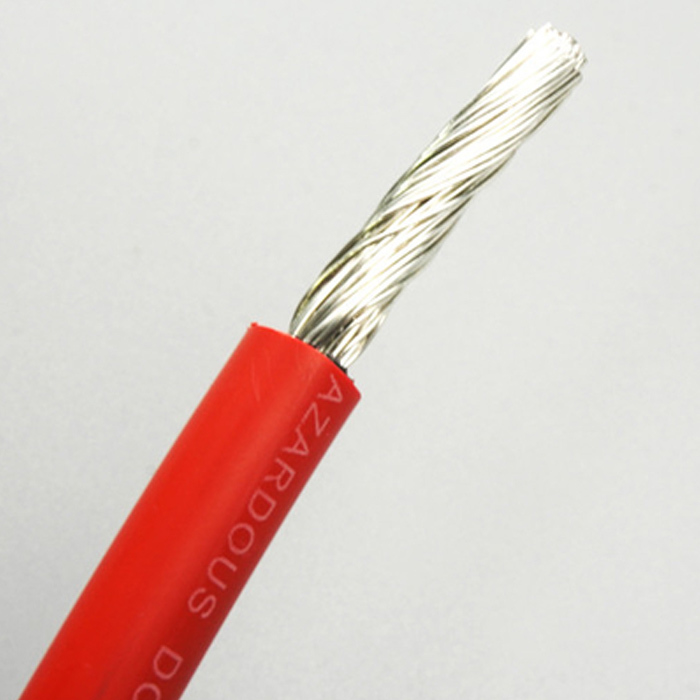

Picture of 4mm PV solar cable
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
